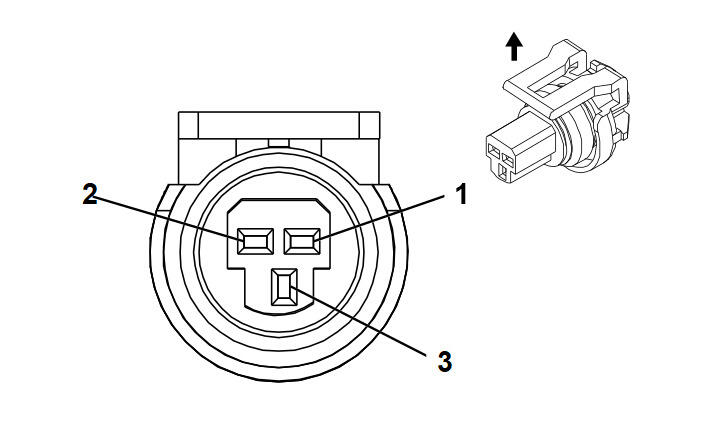

B1 A/C Refrigerant Pressure Sensor
WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.
|
|
Connector Part Information
- Harness Type: Cooling Fan
- OEM Connector: 13846842
- Service Connector: Service by Harness - See Part Catalog
- Description: 3-Way F 150 GT Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-14 (GN) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
BK/BN |
5514 |
A/C Refrigerant Pressure Sensor Low Reference |
I |
- |
| 2 |
0.5 |
BN/RD |
2700 |
A/C Pressure Sensor 5V Reference |
I |
- |
| 3 |
0.5 |
L-GN |
380 |
A/C Refrigerant Pressure Sensor Signal |
I |
- |
