B34 Engine Coolant Temperature Sensor
WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.
|
|

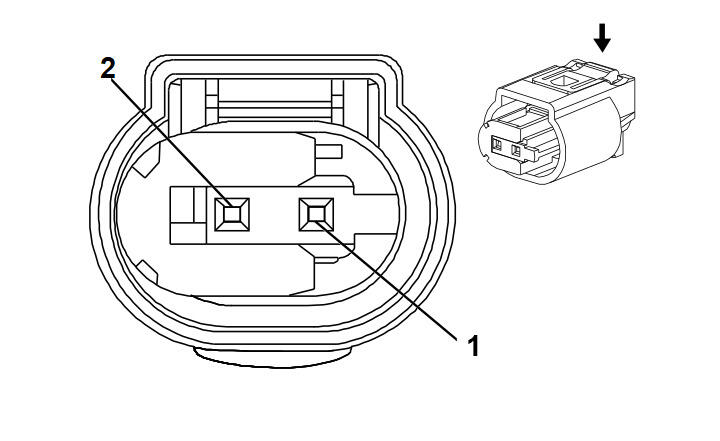

Connector Part Information
- Harness Type: Engine
- OEM Connector: 13623700
- Service Connector: 13577915
- Description: 2-Way F 0.64 Micro-Quadlock Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-64B (LT BU) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
D-BU |
410 |
Engine Coolant Temperature Sensor Signal |
I |
- |
| 2 |
0.5 |
BK/BN |
2761 |
Coolant Temperature Sensor Low Reference |
I |
- |
