B47B Fuel Rail Pressure Sensor
WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.
|
|

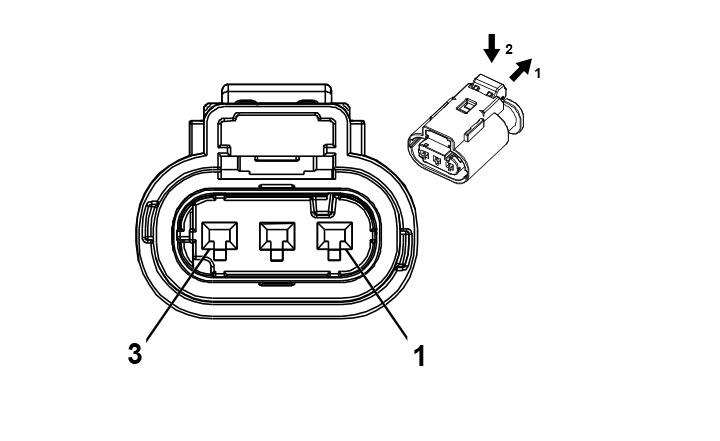

Connector Part Information
- Harness Type: Engine
- OEM Connector: 10010341
- Service Connector: 19299690
- Description: 3-Way F 1.2 MLK Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Available |
J-35616-64B (L-BU) |
J-38125-21 |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
BK/GN |
2919 |
Fuel Rail Pressure Sensor Low Reference |
I |
- |
| 2 |
0.5 |
BU/WH |
2918 |
Fuel Rail Pressure Sensor Signal |
I |
- |
| 3 |
0.5 |
BN/RD |
2917 |
Fuel Rail Pressure Sensor (5) Volt Reference |
I |
- |
