K29F Seat Heating Control Module - Front X1 (KA1 without A45)
WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.
|
|

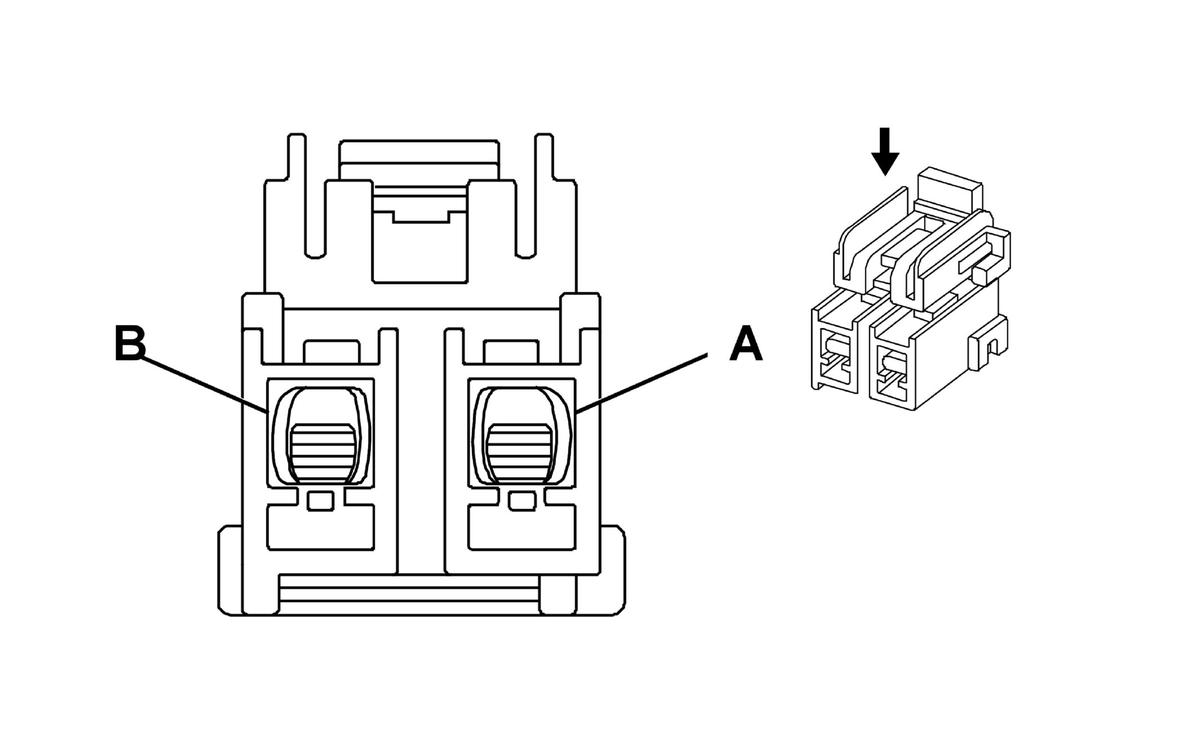

Connector Part Information
- Harness Type: Driver Seat
- OEM Connector: 13527997
- Service Connector: Not Available
- Description: 2-Way F Metri Pack 280 Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| A |
2 |
BK |
2150 |
Ground |
I |
- |
| B |
2.5 |
RD/GN |
5140 |
Battery Positive Voltage |
I |
- |
