M51D Seat Horizontal Motor - Driver
WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.
|
|

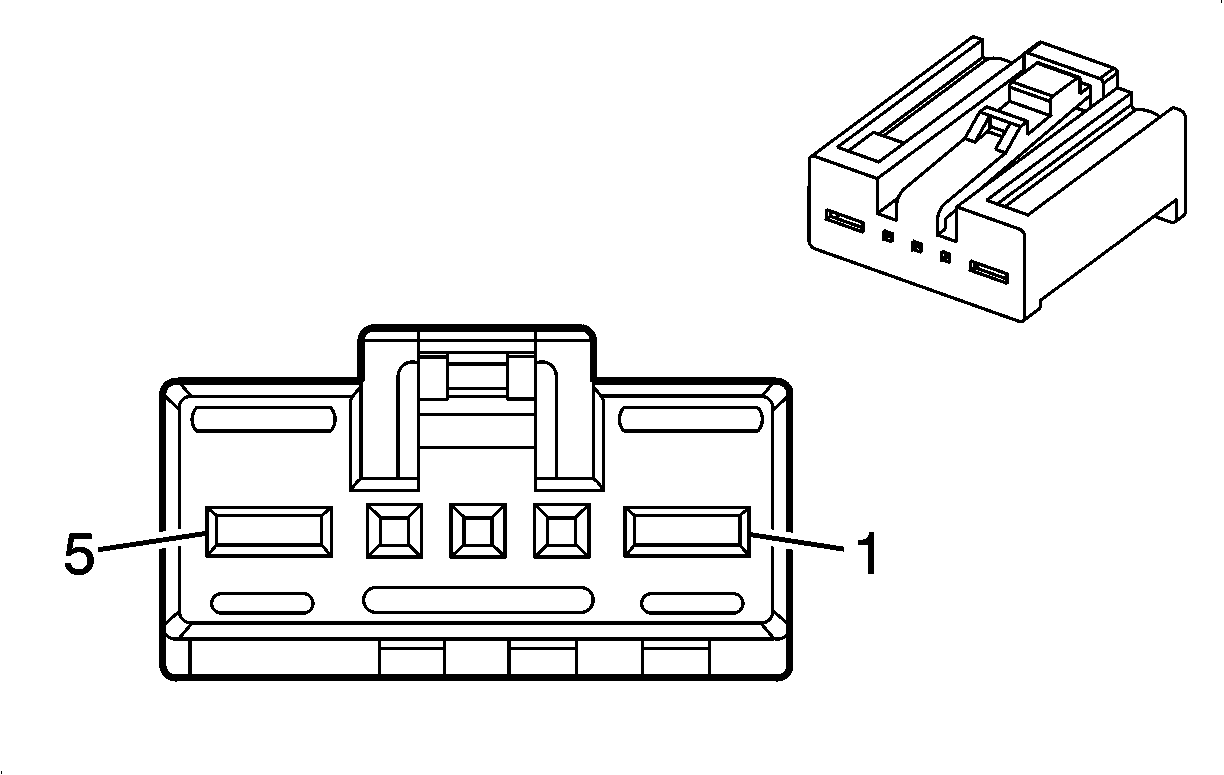

Connector Part Information
- Harness Type: Driver Seat
- OEM Connector: 1438992-1
- Service Connector: Not Available
- Description: 5-Way F MQS/MCP Mixed Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
- |
- |
- |
Not Occupied |
- |
- |
| 2 |
0.35 |
GN |
569 |
Memory Seat Horizontal Motor Position Sensor Signal |
I |
- |
| 3 |
- |
- |
- |
Not Occupied |
- |
- |
| 4 |
0.35 |
WH/RD |
3298 |
Memory Sensor High Reference (2) |
I |
- |
| 5 |
- |
- |
- |
Not Occupied |
- |
- |
