S48A Multifunction Switch - Instrument Panel
WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.
|
|

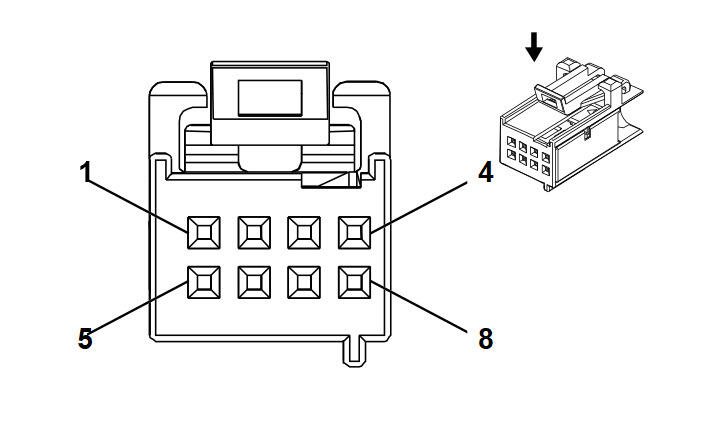

Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: 13623997
- Service Connector: 19300487
- Description: 8-Way F 0.64 Micro-Quadlock Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-64B (LT BU) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
YE |
6817 |
LED Backlight Dimming Control |
I |
- |
| 2 |
0.13 |
D-BU |
1788 |
Traction Control Switch Signal 1 |
I |
- |
| 3 |
- |
- |
- |
Not Occupied |
- |
- |
| 4 |
0.13 |
WH |
6816 |
Indicator Dimming Control |
I |
- |
| 5 |
0.35 |
BK |
1550 |
Ground |
I |
- |
| 6 |
0.35 |
GY/WH |
3153 |
Lane Departure Warning Disable Switch Signal |
I |
- |
| 7 |
0.35 |
WH |
3152 |
Lane Departure Warning Indicator Control |
I |
- |
| 8 |
- |
- |
- |
Not Occupied |
- |
- |
