S70L Steering Wheel Controls Switch - Left
WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.
|
|

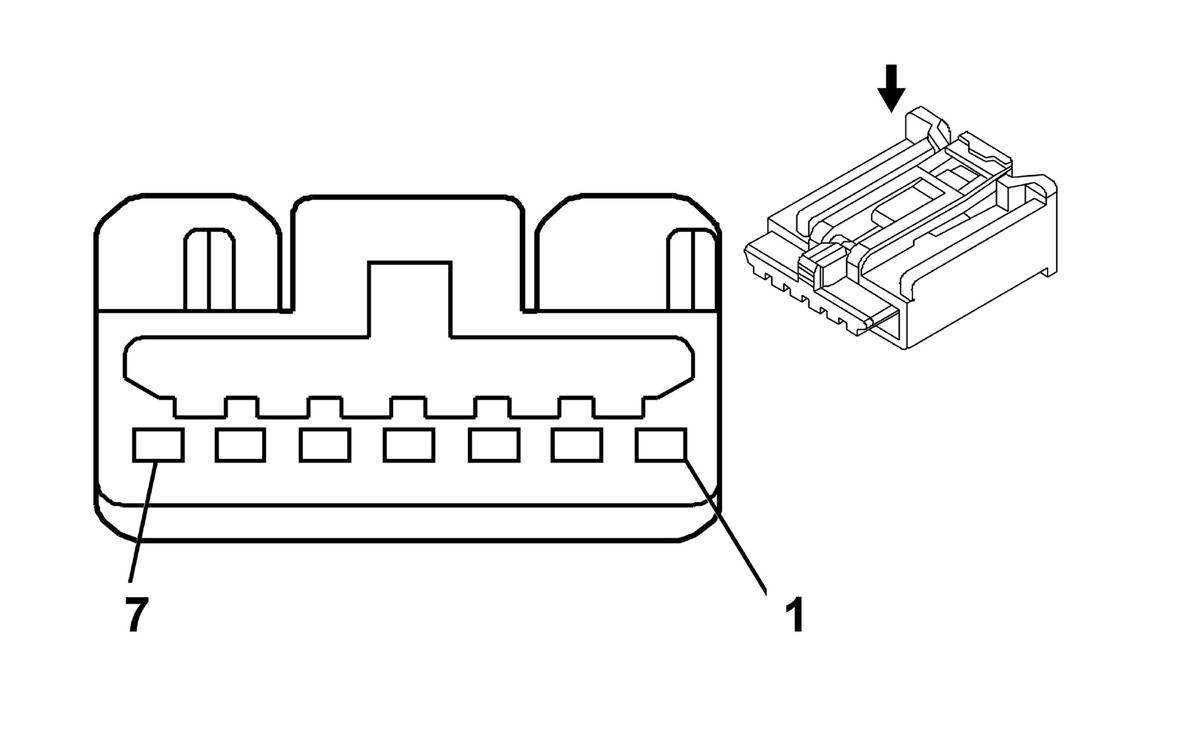

Connector Part Information
- Harness Type: Steering Wheel
- OEM Connector: 15269798
- Service Connector: Not Available
- Description: 7-Way F 0.64 Series (WH)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
WH |
1444 |
12 Volt Reference |
I |
- |
| 2 |
0.35 |
VT |
9153 |
Ground |
I |
- |
| 3 |
0.35 |
GY |
1884 |
Cruise Control Set/Coast/Resume/Accelerate Switch Signal |
I |
- |
| 4-5 |
- |
- |
- |
Not Occupied |
- |
- |
| 6 |
0.35 |
YE |
6136 |
Supply Voltage |
I |
- |
| 7 |
0.35 |
PK |
1550 |
Ground |
I |
- |
