Rear Seat Components - Bottom

Items
1. M50RR Seat Front Vertical Motor - Right Rear (AQ9) M50RR Seat Front Vertical Motor - Right Rear (AQ9)
2. M51RR Seat Horizontal Motor - Right Rear (AQ9) M51RR Seat Horizontal Motor - Right Rear (AQ9)
3. X92B USB Receptacle - Rear Seat X92B USB Receptacle - Rear Seat
4. X81 Accessory Power Receptacle - 110V AC (KI6) X81 Accessory Power Receptacle - 110V AC X1 (KI6)X81 Accessory Power Receptacle - 110V AC X2 (KI6)
5. X81B Accessory Power Receptacle - 220V AC (KI7) X81B Accessory Power Receptacle - 220V AC X1 (KI7)X81B Accessory Power Receptacle - 220V AC X2 (KI7)
6. M51LR Seat Horizontal Motor - Left Rear (AQ9) M51LR Seat Horizontal Motor - Left Rear (AQ9)
7. M50LR Seat Front Vertical Motor - Left Rear (AQ9) M50RR Seat Front Vertical Motor - Right Rear (AQ9)
8. K29R Seat Heating Control Module - Rear (KA6) K29R Seat Heating Control Module - Rear X1 (KA6+AQ9)K29R Seat Heating Control Module - Rear X1 (KA6-AQ9)K29R Seat Heating Control Module - Rear X2 (KA6+AQ9)K29R Seat Heating Control Module - Rear X2 (KA6-AQ9)

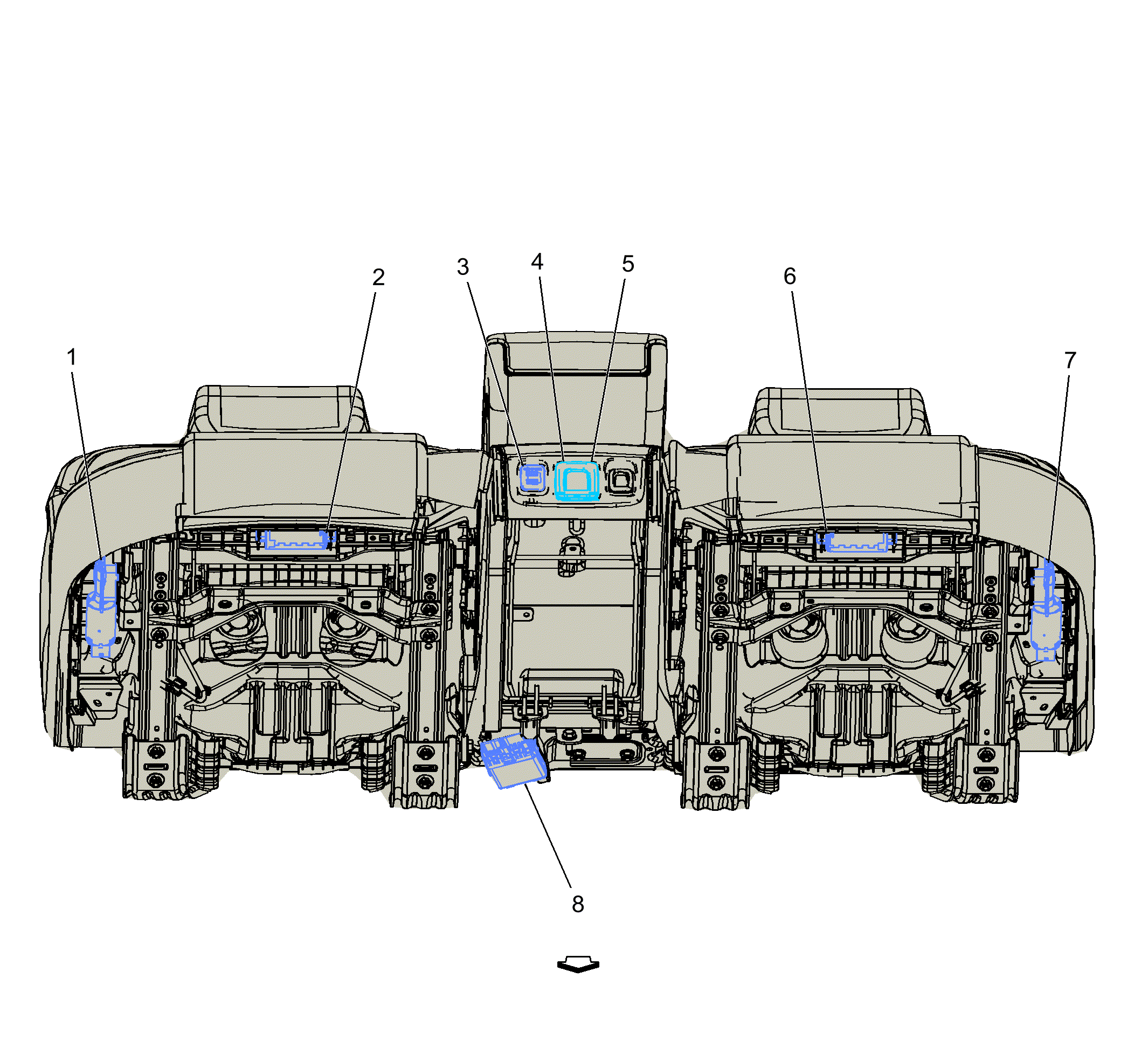

Fig 1: Rear Seat Components - Bottom

Courtesy of GENERAL MOTORS COMPANY
