Rear Seat Components - Front (1 of 2)

Rear Seat Components - Front (1 of 2)

Items
1. M73H Seat Blower Motor - Right Rear Cushion (KA6+AQ9)
2. M73F Seat Blower Motor - Right Rear Back (KA6+AQ9)
3. M73E Seat Blower Motor - Left Rear Back (KA6+AQ9)
4. M73G Seat Blower Motor - Left Rear Cushion (KA6+AQ9)

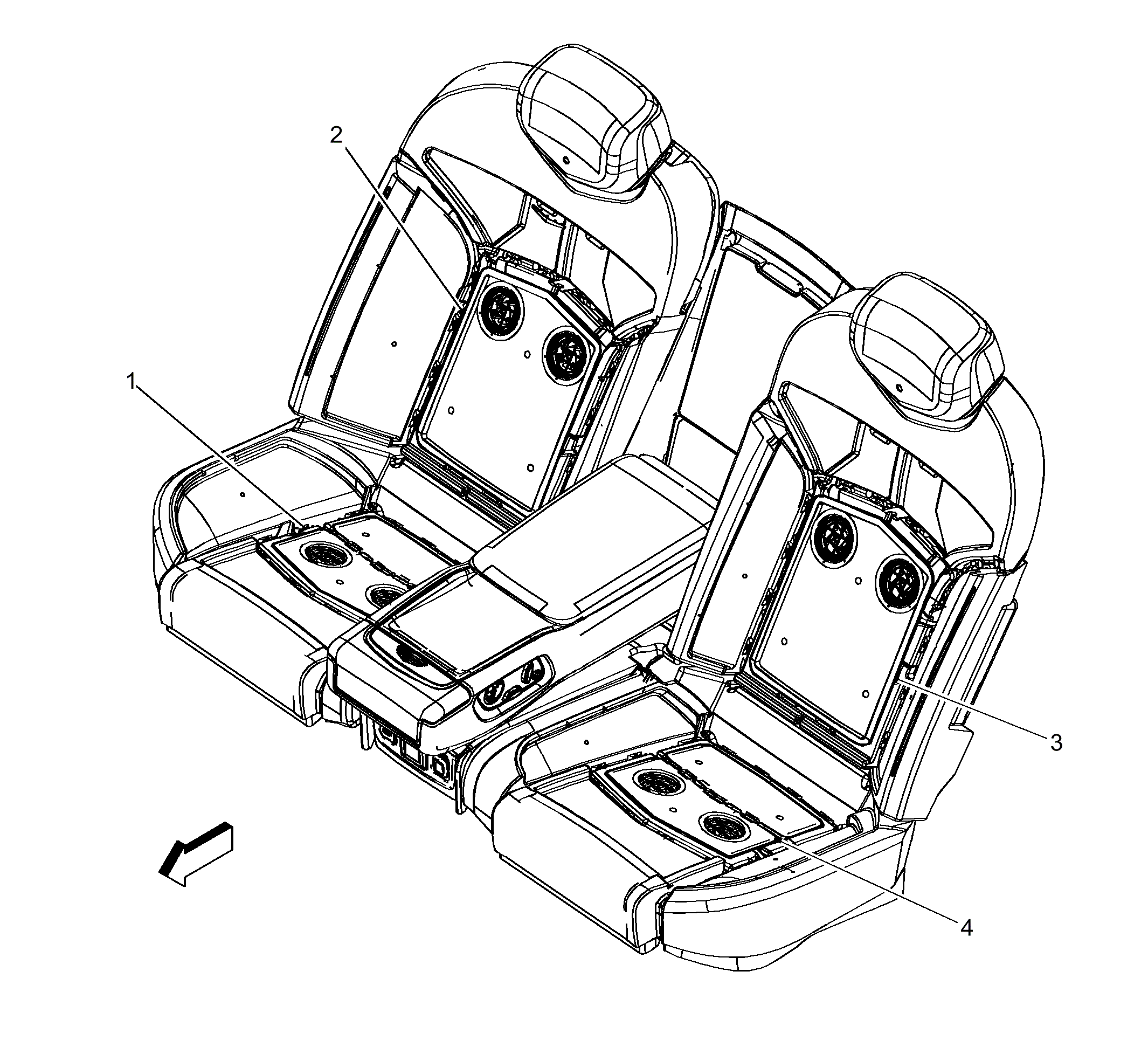

Fig 1: Rear Seat Components - Front (1 of 2)
GM4224393Courtesy of GENERAL MOTORS COMPANY
