Front Seat Belt Guide Adjuster Replacement

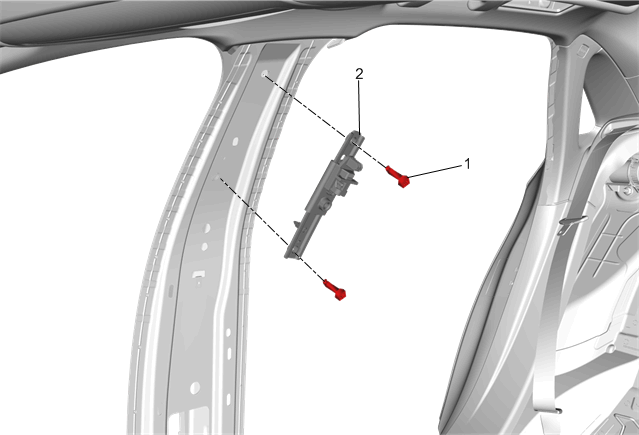

Fig 1: Front Seat Belt Guide Adjuster

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Center Pillar Upper Trim Panel Replacement Disconnect the seat belt. Refer to Front Seat Belt Retractor Replacement
1	Front Seat Belt Guide Adjuster Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten 45 N.m (33 lb ft)
2	Front Seat Belt Guide Adjuster Procedure Release the retainer.

Callout

Component Name

Preliminary Procedures

Front Seat Belt Guide Adjuster Bolt [2x]

CAUTION: Refer to Fastener Caution .

Tighten
45 N.m (33 lb ft)

Front Seat Belt Guide Adjuster
Procedure
Release the retainer.
