Serial Data Gateway Module and Data Link Connector Power and Ground

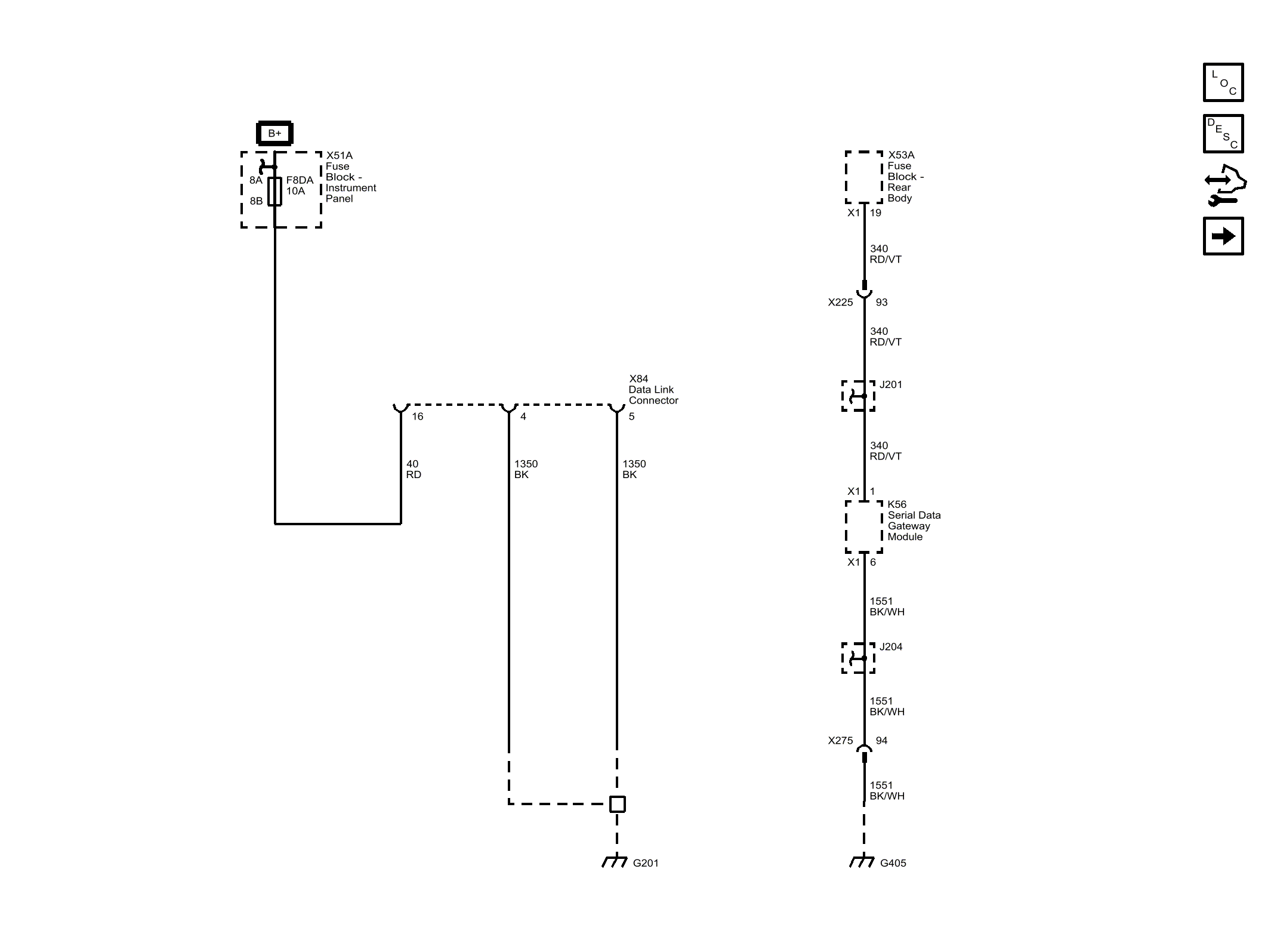

Fig 1: Serial Data Gateway Module and Data Link Connector Power and Ground
GM4476972Courtesy of GENERAL MOTORS COMPANY
