Auxiliary Inputs (IO6+MAW)

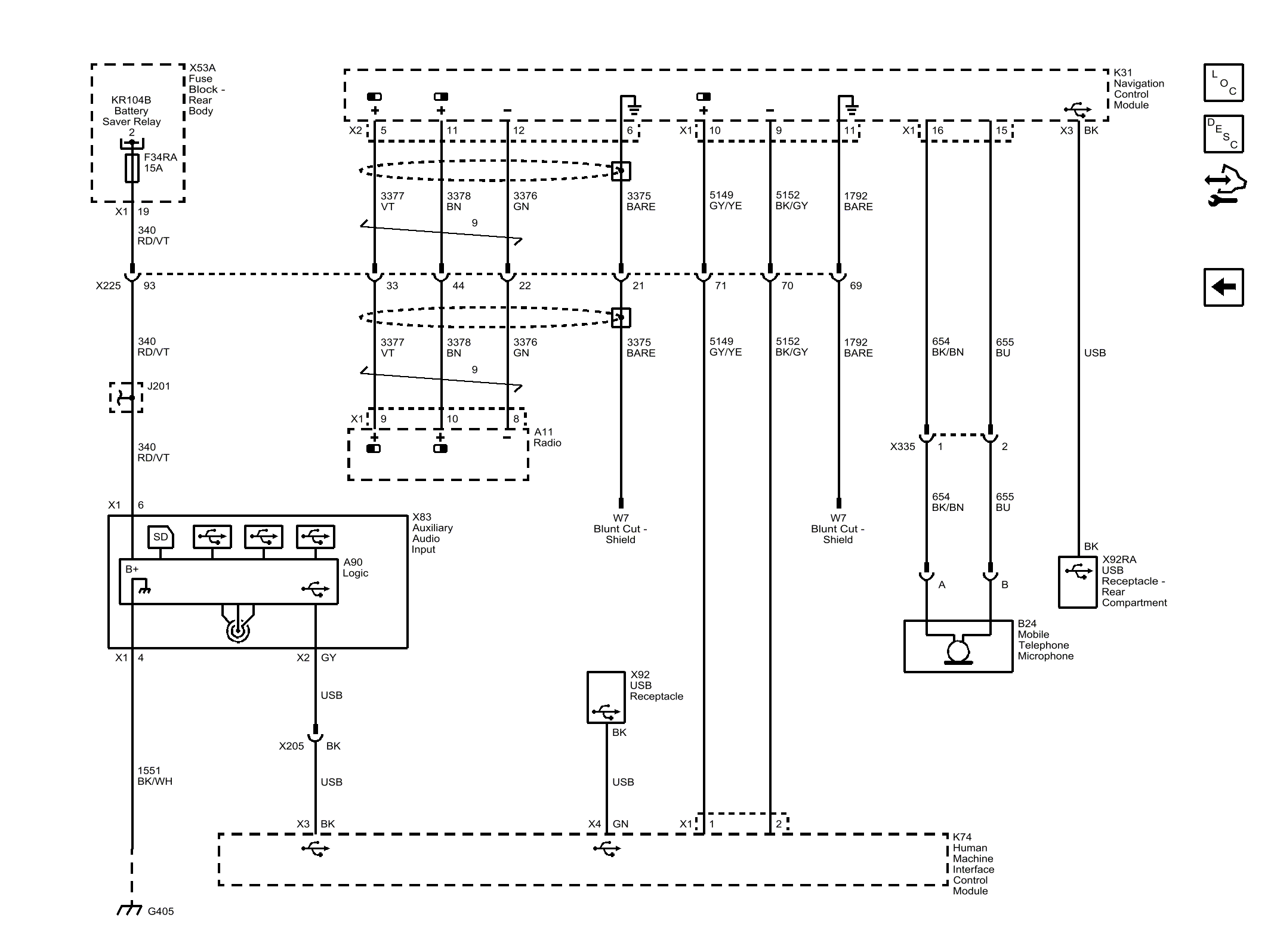

Fig 1: Auxiliary Inputs (IO6+MAW)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
