Passenger Compartment Components - Driver Seat Components (W2E)

Items
1. E14A Seat Heating Element - Driver Back (KA1) E14A Seat Heating Element - Driver Back (KA1)
2. F106LF Seat Side Air Bag - Left Front F106LF Seat Side Air Bag - Left Front
3. K134D Seat Bolster Memory Control Module - Driver (W2E) K134D Seat Bolster Memory Control Module - Driver (W2E)
4. M56D Seat Recline Motor - Driver M56D Seat Recline Motor - Driver M56D Seat Recline Motor - Driver (W2E)
5. G31D Seat Lumbar/Bolster Pump - Driver G31D Seat Lumbar/Bolster Pump - Driver (-W2E)G31D Seat Lumbar/Bolster Pump - Driver (W2E)
6. F113D Seat Belt Anchor Pretensioner - Driver F113D Seat Belt Anchor Pretensioner - Driver
7. M55D Seat Rear Vertical Motor - Driver M55D Seat Rear Vertical Motor - Driver
8. M51D Seat Horizontal Motor - Driver M51D Seat Horizontal Motor - Driver
9. K40D Seat Memory Control Module - Driver K40D Seat Memory Control Module - Driver X1 K40D Seat Memory Control Module - Driver X2 K40D Seat Memory Control Module - Driver X3 K40D Seat Memory Control Module - Driver X4 (AQJ)K40D Seat Memory Control Module - Driver X5 K40D Seat Memory Control Module - Driver X6
10. M50D Seat Front Vertical Motor - Driver M50D Seat Front Vertical Motor - Driver
11. P45LR Seat Haptic Movement Motor - Driver Left Rear (UEU/UGN/UHX) P45LR Seat Haptic Signal Motor - Driver Left Rear (UEU, UFL, UGN or UVZ)
12. S64D Seat Adjuster Switch - Driver S64D Seat Adjuster Switch - Driver (W2E)S64D Seat Adjuster Switch - Driver X1 (AQJ)S64D Seat Adjuster Switch - Driver X2 (AQJ)
13. E14B Seat Heating Element - Driver Cushion (KA1) E14B Seat Heating Element - Driver Cushion (KA1)
14. P45RR Seat Haptic Movement Motor - Driver Right Rear (UEU/UGN/UHX) P45RR Seat Haptic Signal Motor - Driver Right Rear (UEU, UFL, UGN or UVZ)
15. B88D Seat Belt Switch - Driver
16. B153D Seat Belt Buckle - Driver B88D Seat Belt Switch - Driver (without UEU)B88D Seat Belt Switch - Driver (UEU)

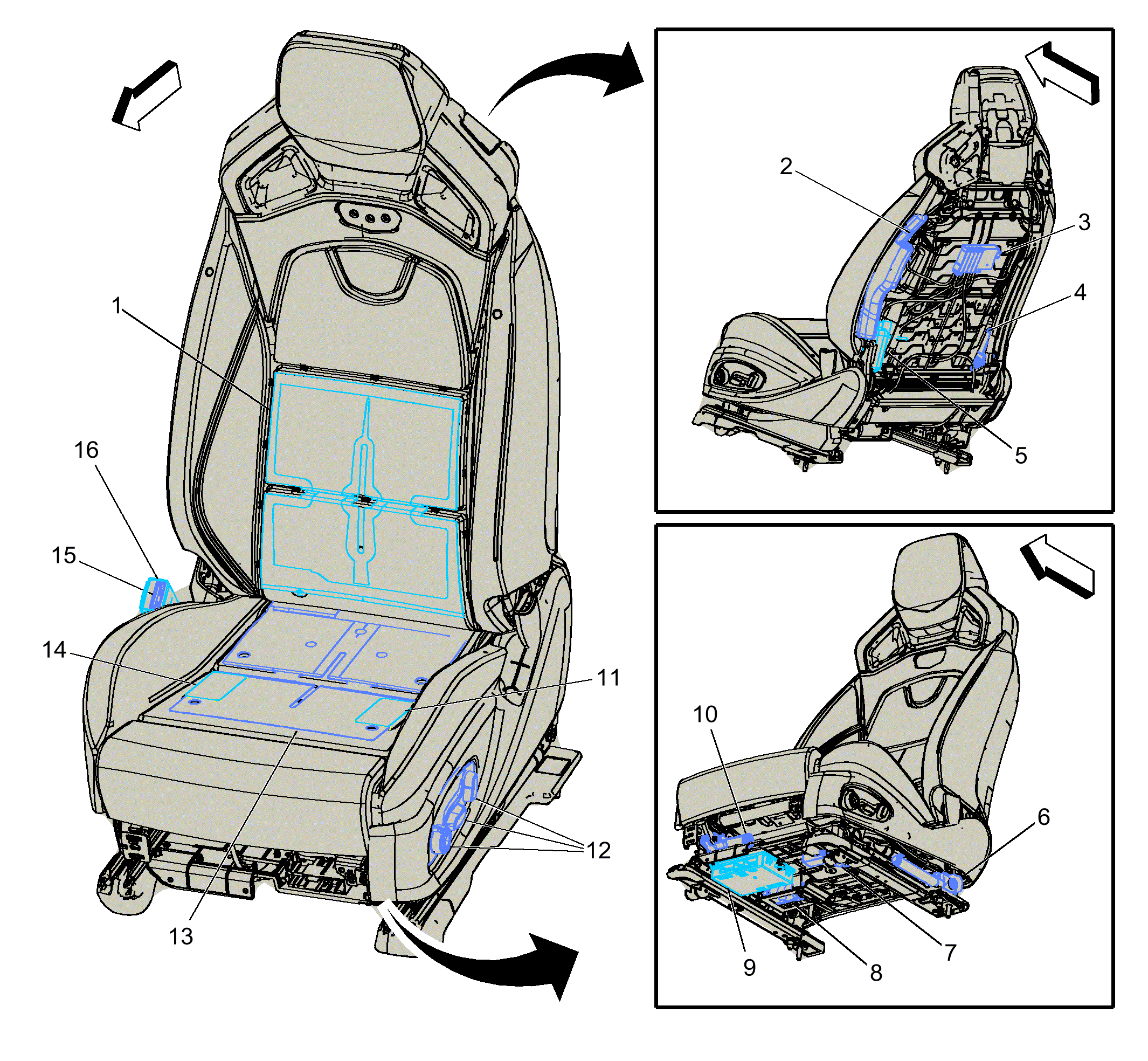

Fig 1: Passenger Compartment Components - Driver Seat Components (W2E)

Courtesy of GENERAL MOTORS COMPANY
