Passenger Compartment Components - Driver Seat Components

Items
1. M56D Seat Recline Motor - Driver M56D Seat Recline Motor - Driver M56D Seat Recline Motor - Driver (W2E)
2. Q10D Seat Side Bolster Adjuster Valve Assembly - Driver (AQJ) Q10D Seat Side Bolster Adjuster Valve Assembly - Driver (AQJ)
3. E14A Seat Heating Element - Driver Back (KA1) E14A Seat Heating Element - Driver Back (KA1)
4. Q51D Seat Lumbar Support Valve Assembly - Driver Q51D Seat Lumbar Support Valve Assembly - Driver (-AQJ)
5. F106LF Seat Side Air Bag - Left Front F106LF Seat Side Air Bag - Left Front
6. M73C Seat Blower Motor - Driver Cushion (KB6) M73C Seat Blower Motor - Driver Cushion (KB6)
7. M73A Seat Blower Motor - Driver Back (KB6) M73A Seat Blower Motor - Driver Back (KB6)
8. S64D Seat Adjuster Switch - Driver S64D Seat Adjuster Switch - Driver (W2E)S64D Seat Adjuster Switch - Driver X1 (AQJ)S64D Seat Adjuster Switch - Driver X2 (AQJ)
9. G31D Seat Lumbar/Bolster Pump - Driver G31D Seat Lumbar/Bolster Pump - Driver (-W2E)G31D Seat Lumbar/Bolster Pump - Driver (W2E)
10. F113D Seat Belt Anchor Pretensioner - Driver F113D Seat Belt Anchor Pretensioner - Driver
11. M50D Seat Front Vertical Motor - Driver M50D Seat Front Vertical Motor - Driver
12. M55D Seat Rear Vertical Motor - Driver M55D Seat Rear Vertical Motor - Driver
13. E8T Seat Courtesy Lamp - Left Rear E8T Seat Courtesy Lamp - Left Rear
14. M51D Seat Horizontal Motor - Driver M51D Seat Horizontal Motor - Driver
15. K40D Seat Memory Control Module - Driver K40D Seat Memory Control Module - Driver X1 K40D Seat Memory Control Module - Driver X2 K40D Seat Memory Control Module - Driver X3 K40D Seat Memory Control Module - Driver X4 (AQJ)K40D Seat Memory Control Module - Driver X5 K40D Seat Memory Control Module - Driver X6
16. P45LR Seat Haptic Movement Motor - Driver Left Rear (UEU/UGN/UHX) P45LR Seat Haptic Signal Motor - Driver Left Rear (UEU, UFL, UGN or UVZ)
17. E14B Seat Heating Element - Driver Cushion (KA1) E14B Seat Heating Element - Driver Cushion (KA1)
18. P45RR Seat Haptic Movement Motor - Driver Right Rear (UEU/UGN/UHX) P45RR Seat Haptic Signal Motor - Driver Right Rear (UEU, UFL, UGN or UVZ)
19. B88D Seat Belt Switch - Driver
20. B153D Seat Belt Buckle - Driver B88D Seat Belt Switch - Driver (without UEU)B88D Seat Belt Switch - Driver (UEU)

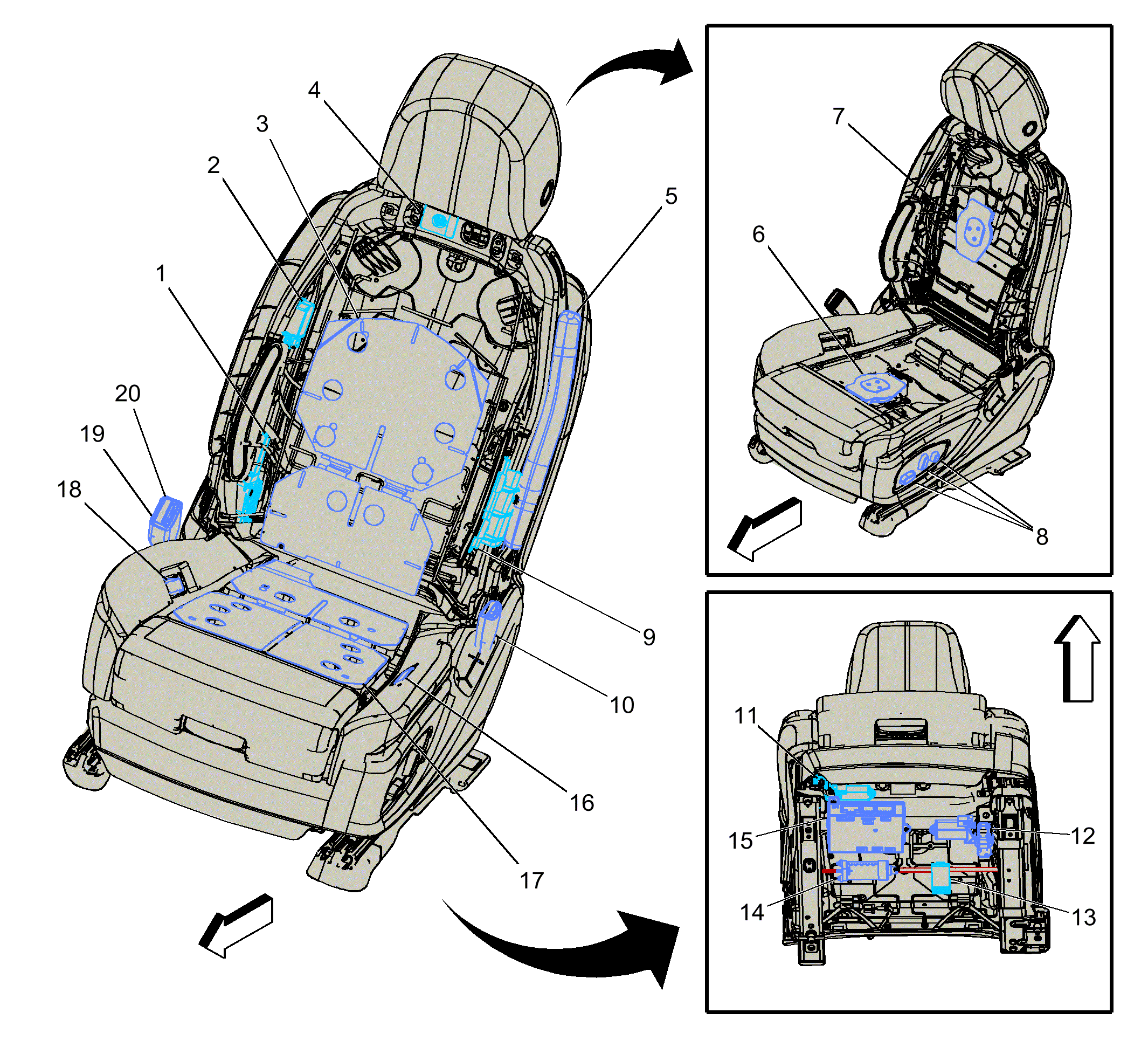

Fig 1: Passenger Compartment Components - Driver Seat Components

Courtesy of GENERAL MOTORS COMPANY
