Inside Rearview Mirror Replacement

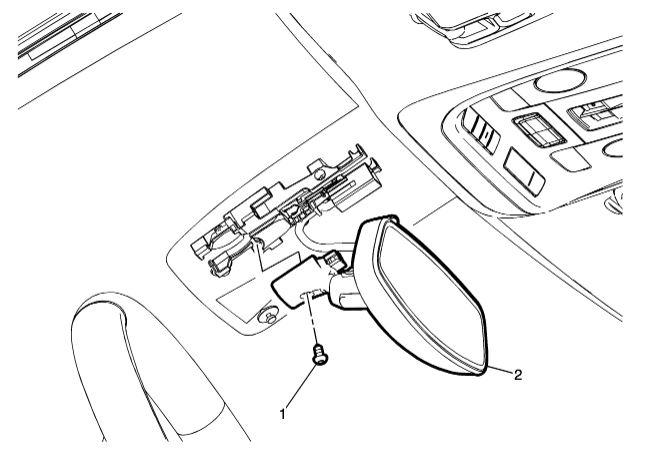

Fig 1: Inside Rearview Mirror

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the windshield multifunction sensor mount bracket cover. Refer to Windshield Multifunction Sensor Mount Bracket Cover Replacement (With UEU, UFL)Windshield Multifunction Sensor Mount Bracket Cover Replacement (Without UEU, UFL)
1	Inside Rearview Mirror Screw CAUTION: Refer to Fastener Caution . Procedure Disconnect the electrical connector. Adjust the mirror to the full upward position. Loosen the set screw located at the base of the mirror. Tighten 1.8 N.m (16 lb in)
2	Inside Rearview Mirror Procedure Slide the mirror off the rearview mirror bracket.

Callout

Component Name

Inside Rearview Mirror Screw

CAUTION:

Procedure

Tighten
1.8 N.m (16 lb in)

Inside Rearview Mirror
Procedure
Slide the mirror off the rearview mirror bracket.
