Front Seat Adjuster Memory Module Bracket Replacement

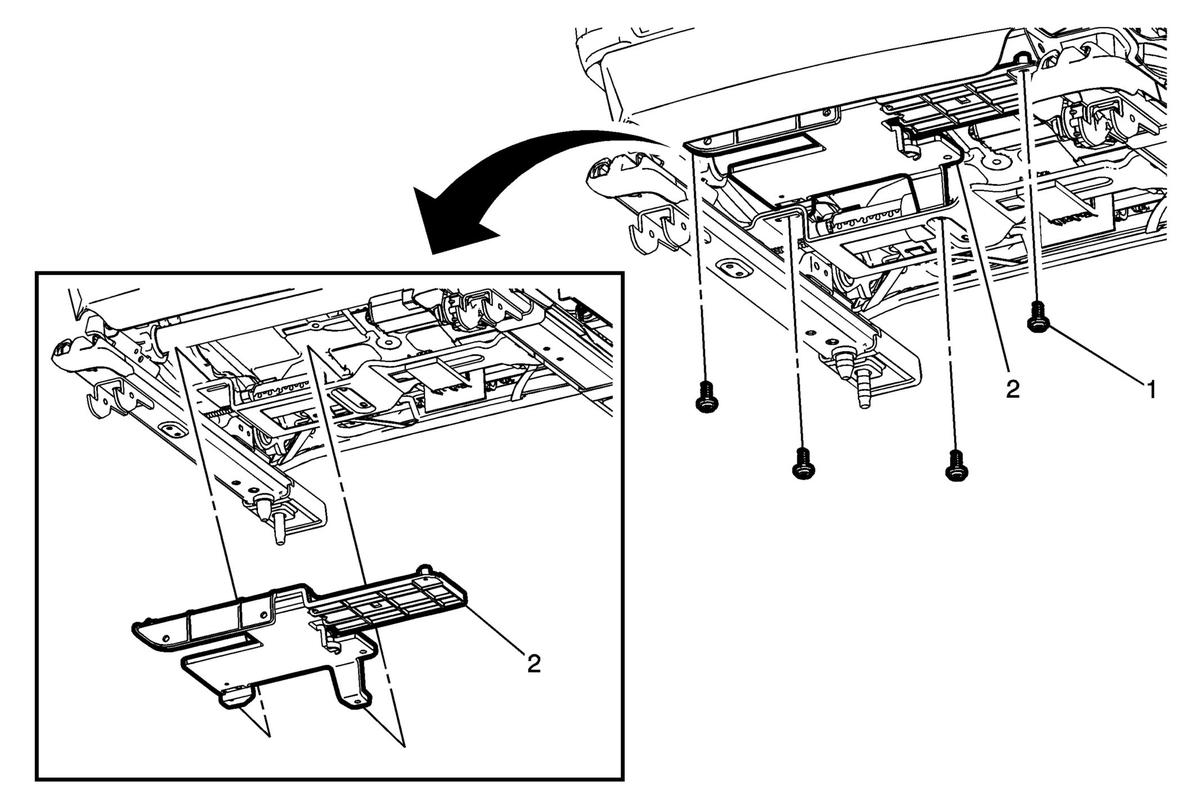

Fig 1: Front Seat Adjuster Memory Module Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the driver or passenger seat. Refer to Driver or Passenger Seat Removal and Installation . Remove the driver or passenger seat adjuster memory module, if equipped. Refer to Driver or Passenger Seat Adjuster Memory Module Replacement .
1	Front Seat Adjuster Memory Module Bracket Fastener (Qty: 4) CAUTION: Refer to Fastener Caution .
2	Front Seat Adjuster Memory Module Bracket Procedure Unclip the electrical harness from the bracket.

Callout

Component Name

Preliminary Procedures

Remove the driver or passenger seat. Refer to Driver or Passenger Seat Removal and Installation .
Remove the driver or passenger seat adjuster memory module, if equipped. Refer to Driver or Passenger Seat Adjuster Memory Module Replacement .

Front Seat Adjuster Memory Module Bracket Fastener (Qty: 4)

CAUTION:

Front Seat Adjuster Memory Module Bracket
Procedure
Unclip the electrical harness from the bracket.
