Installation Procedure

  1. Install the wheel speed sensor to the steering knuckle.

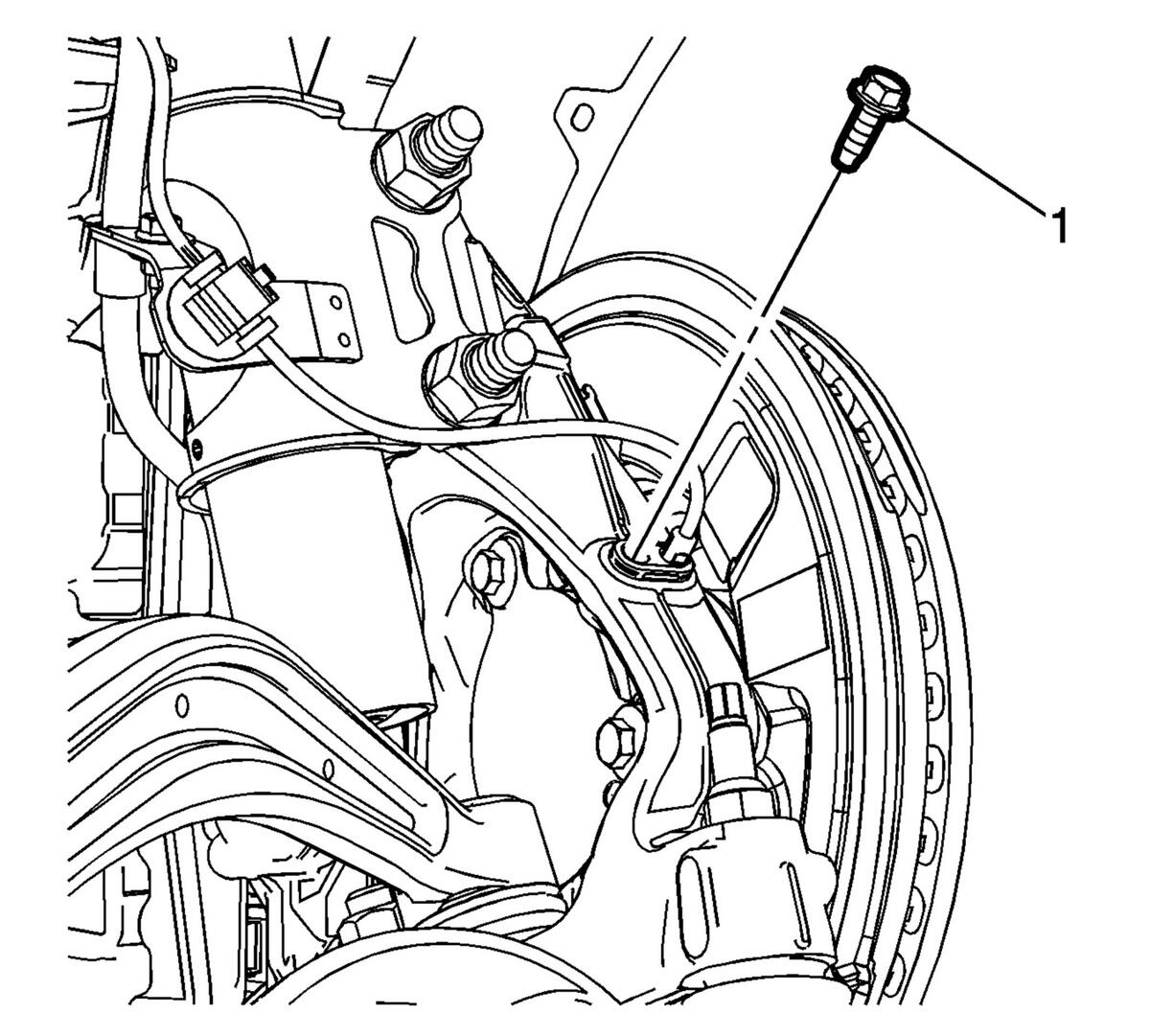

    2. Fig 1: Wheel Speed Sensor Bolt
    GM2809446Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  2. Install the wheel speed sensor bolt (1) and tighten to 10 N.m (89 lb in).

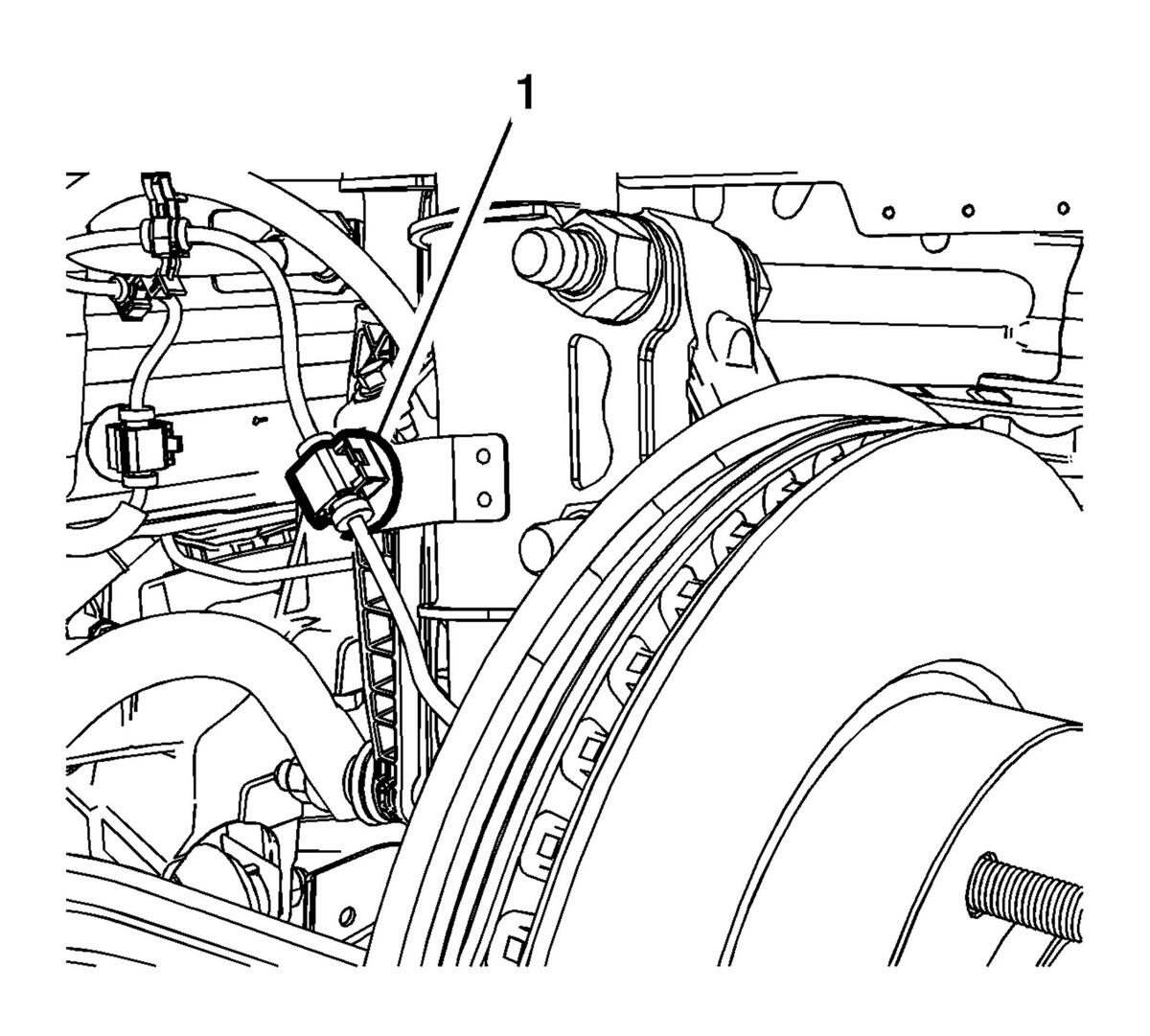

    3. Fig 2: Wheel Speed Sensor Harness Retainer
    GM2809444Courtesy of GENERAL MOTORS COMPANY
  3. Install the wheel speed sensor harness retainer (1) to the strut bracket.

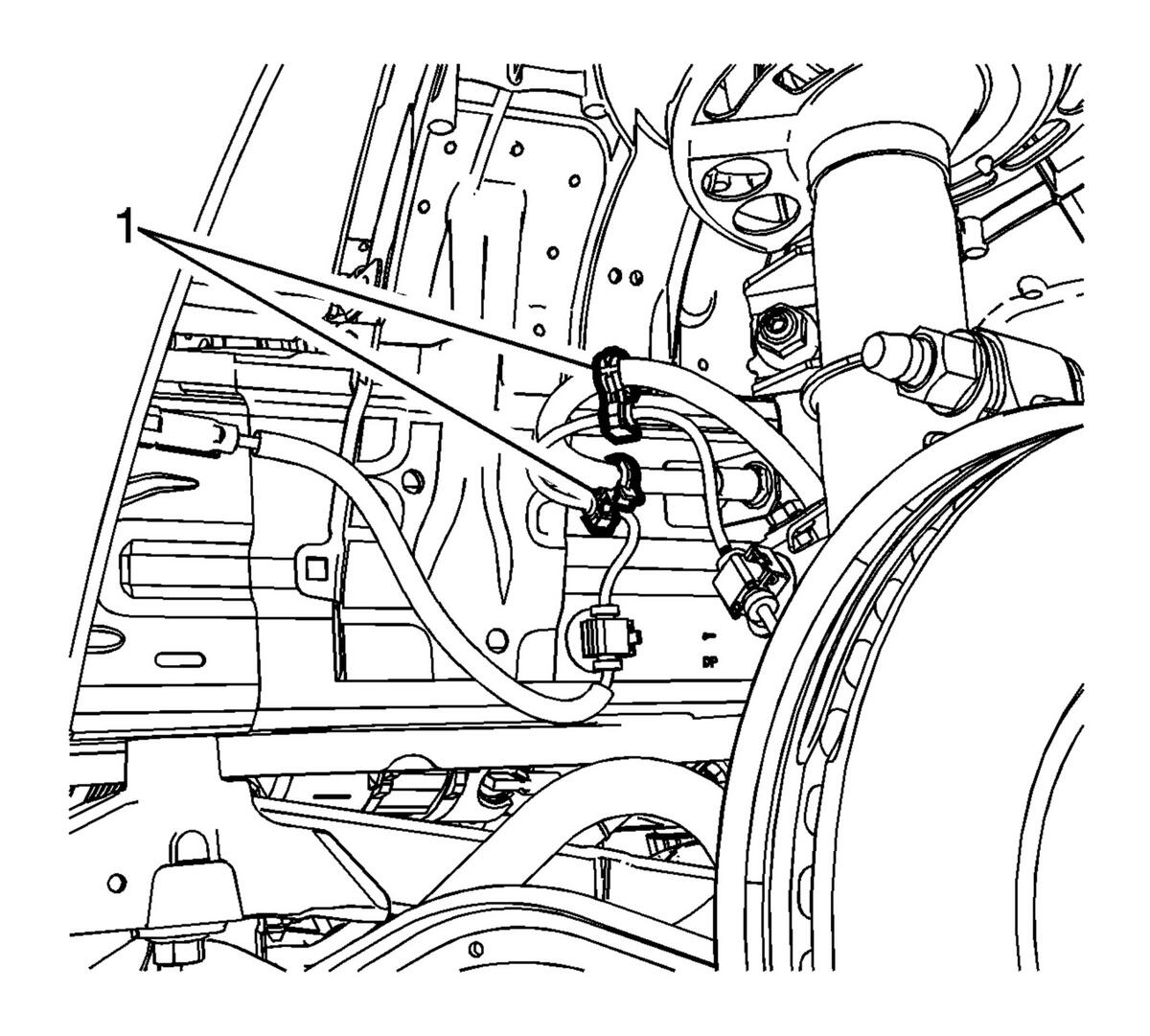

    4. Fig 3: Wheel Speed Sensor Harness Clips
    GM2809442Courtesy of GENERAL MOTORS COMPANY
  4. Install the wheel speed sensor harness clips (1) to the front brake hose.
    5. Fig 4: Wheel Speed Sensor Harness Clip
    GM2809435Courtesy of GENERAL MOTORS COMPANY
  5. Install the wheel speed sensor harness clip (1) to the vehicle frame.

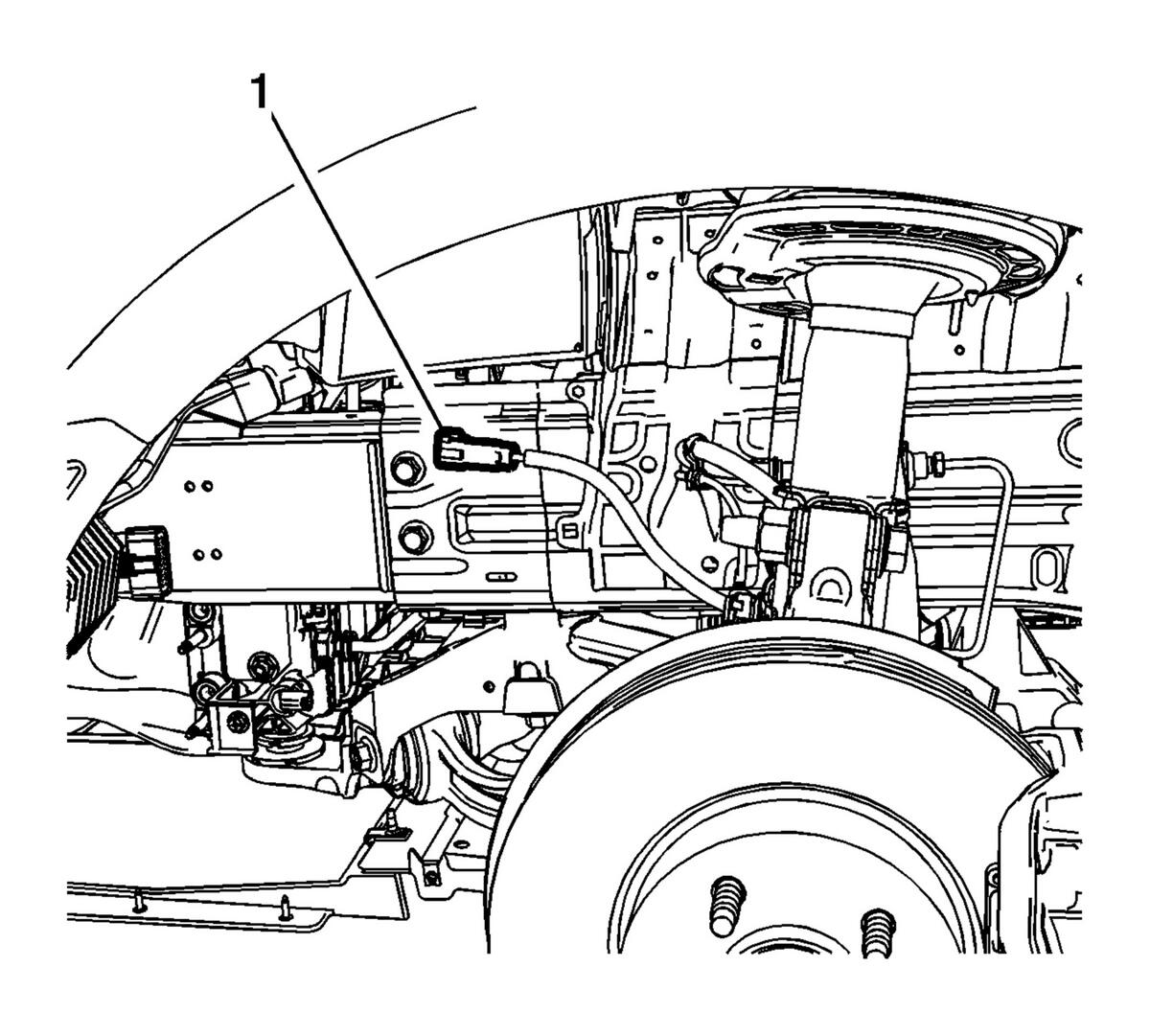

    6. Fig 5: Wheel Speed Sensor Electrical Connector Clip
    GM2809432Courtesy of GENERAL MOTORS COMPANY
  6. Install the wheel speed sensor connector clip (1) to the vehicle frame.
  7. Connect the wheel speed sensor electrical connector.
  8. Install the front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement .
  9. Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
  10. Perform the Diagnostic System Check - Vehicle .
