Fuel Level Sensor Replacement

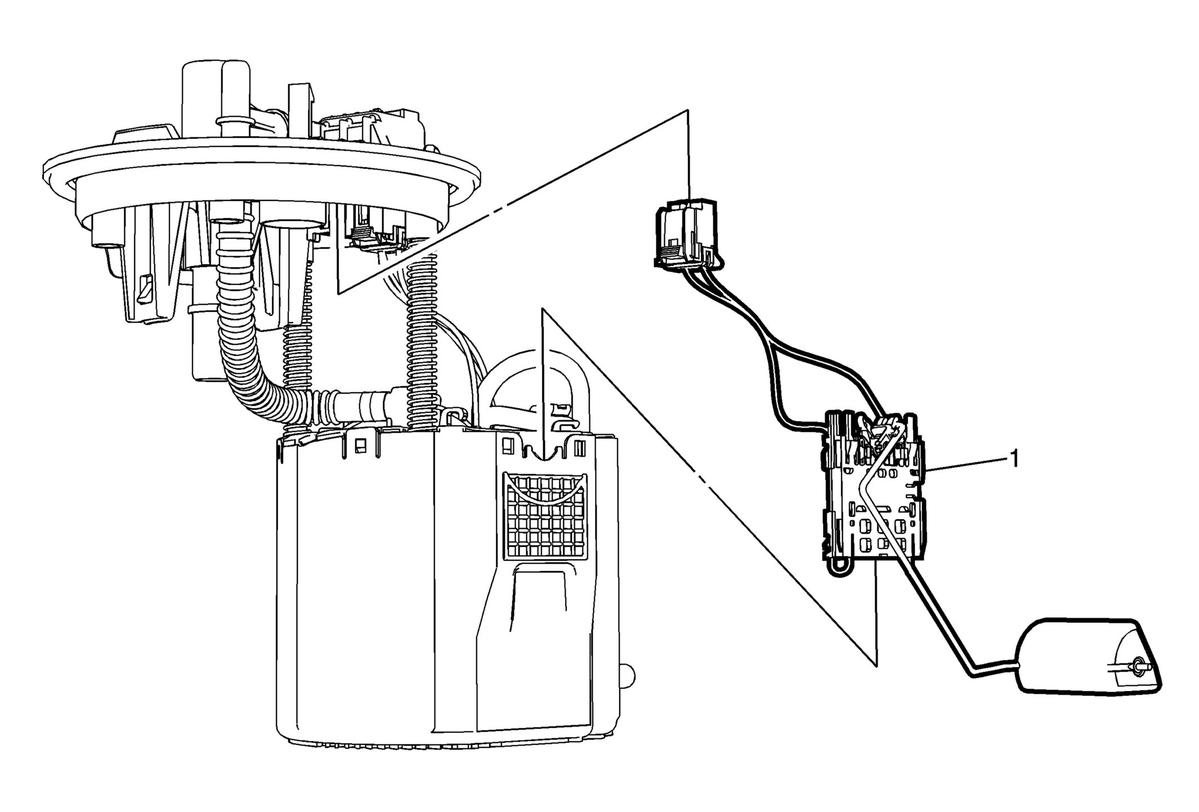

Fig 1: Fuel Level Sensor
GM2811832Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the fuel tank fuel pump module. Refer to Fuel Tank Fuel Pump Module Replacement .
1 Fuel Level Sensor
Procedure
Release the fuel level sensor tabs and disconnect the electrical connector.
