Oil Pump Flow Control Valve Heat Shield Replacement

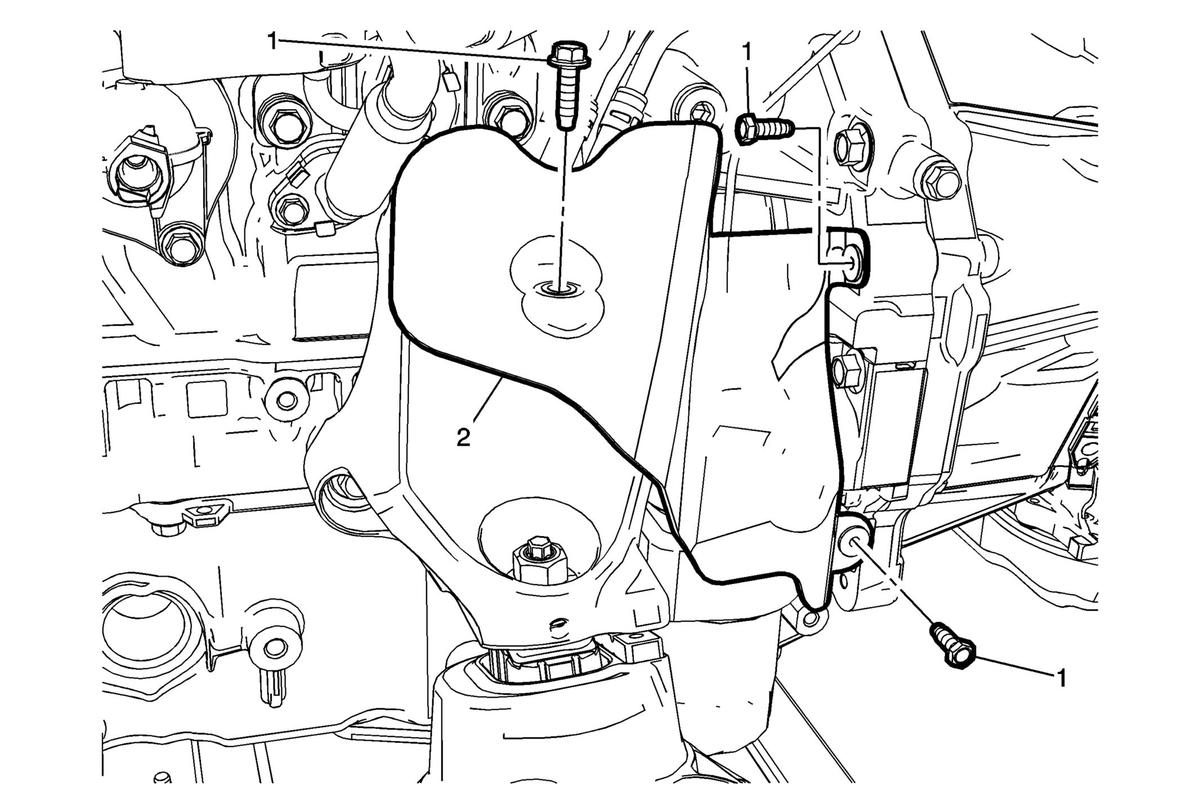

Fig 1: Oil Pump Flow Control Valve Heat Shield

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Oil Pump Flow Control Valve Heat Shield Fasteners (Qty 3) CAUTION: Refer to Fastener Caution . Tighten  10 N.m (89 lb in)
2	Oil Pump Flow Control Valve Heat Shield
