Fan Control Module Replacement (LGX without V03)

WARNING: This page is about a different car, the 2016 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

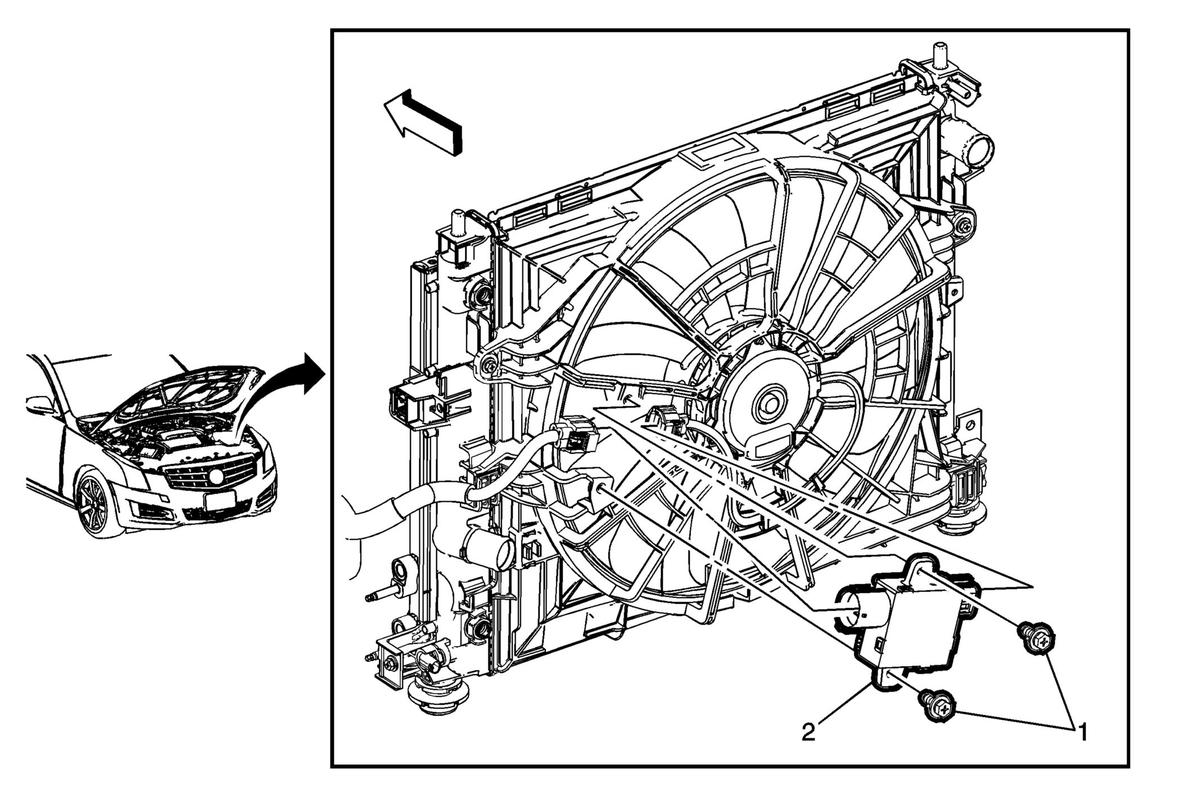

Fig 1: Fan Control Module (LGX without V03)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Air Cleaner Outlet Duct Replacement (LGX) Disconnect the electrical connectors.
1	Fan Control Module Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten 8 N.m (71 lb in)
2	Fan Control Module

Callout

Component Name

Preliminary Procedures

Air Cleaner Outlet Duct Replacement (LGX)
Disconnect the electrical connectors.

Fan Control Module Bolt [2x]

CAUTION: Refer to Fastener Caution .

Tighten
8 N.m (71 lb in)

Fan Control Module
