Ignition Lock Key Transmitter Antenna Replacement - Instrument Panel

WARNING: This page is about a different car, the 2016 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

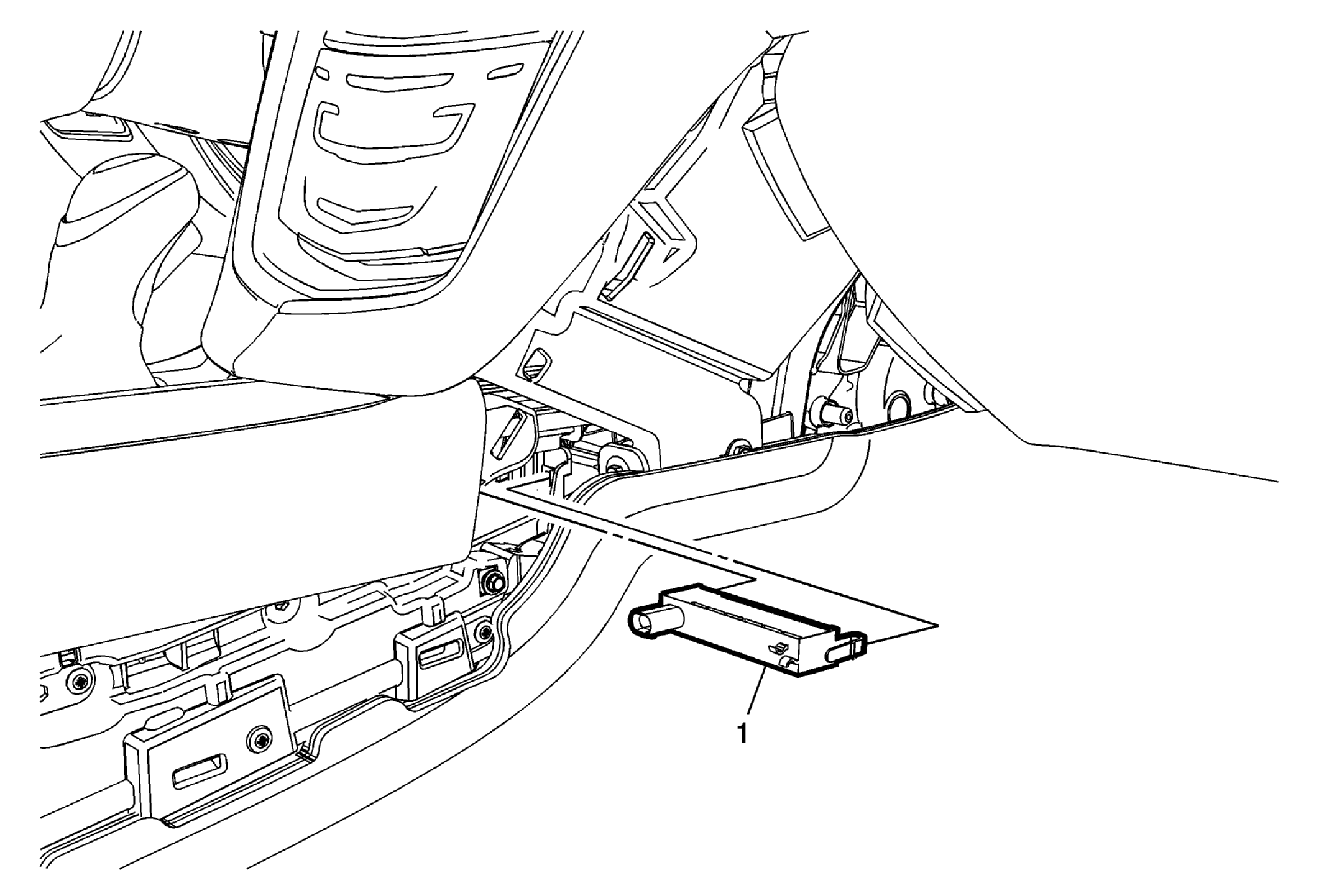

Fig 1: Ignition Lock Key Transmitter Antenna - Instrument Panel

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the instrument panel lower center trim panel - right side. Refer to Instrument Panel Lower Center Trim Panel Replacement (Right Side) .
1	Ignition Lock Key Transmitter Antenna Procedure Disconnect the electrical connector. Unsnap antenna from the bracket.

Callout

Component Name

Preliminary Procedure
Remove the instrument panel lower center trim panel - right side. Refer to Instrument Panel Lower Center Trim Panel Replacement (Right Side) .

Ignition Lock Key Transmitter Antenna

Procedure

Disconnect the electrical connector.
Unsnap antenna from the bracket.
