Radio Bracket Replacement

WARNING: This page is about a different car, the 2016 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

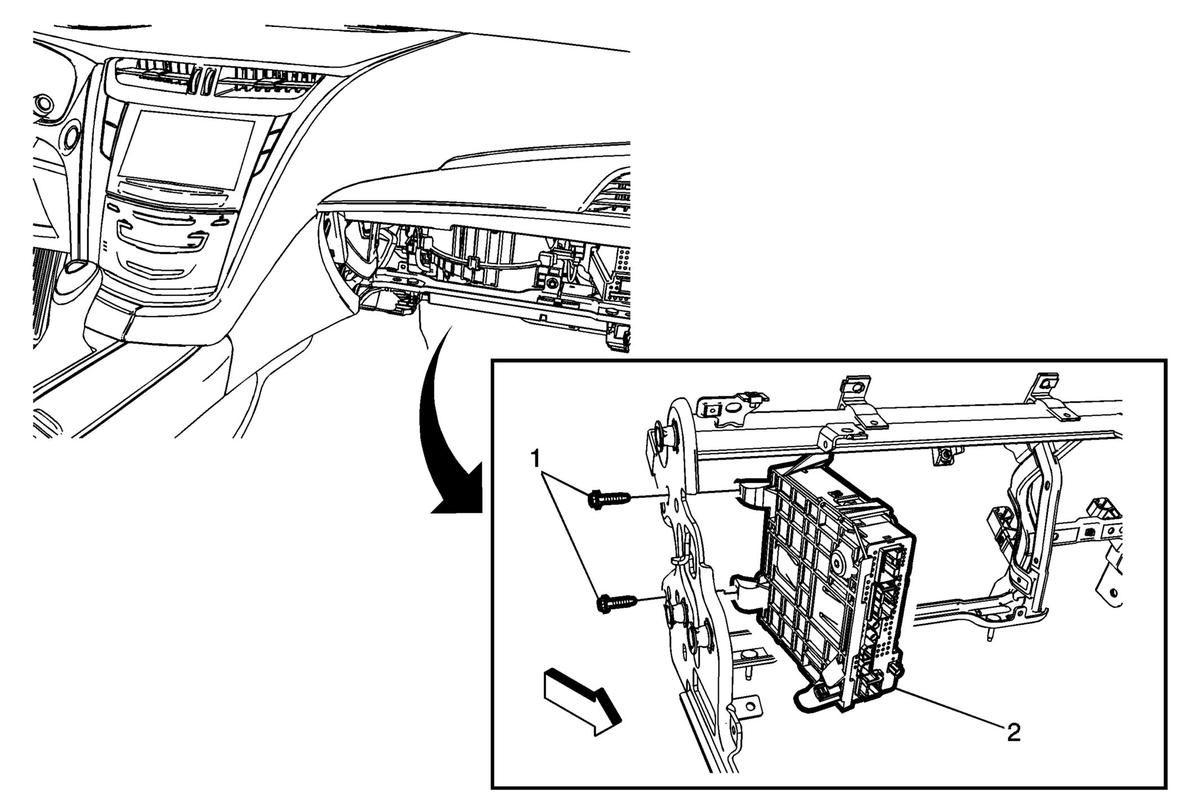

Fig 1: Radio Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the radio. Refer to Radio Replacement .
1	Radio Bracket Fasteners (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Radio Bracket Procedure Disconnect the electrical connections. Transfer components as necessary.

Callout

Component Name

Preliminary Procedure
Remove the radio. Refer to Radio Replacement .

Radio Bracket Fasteners (Qty: 2)

CAUTION: Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)

Radio Bracket

Procedure

Disconnect the electrical connections.
Transfer components as necessary.
