Radio Control Switch Replacement - Steering Wheel

WARNING: This page is about a different car, the 2016 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

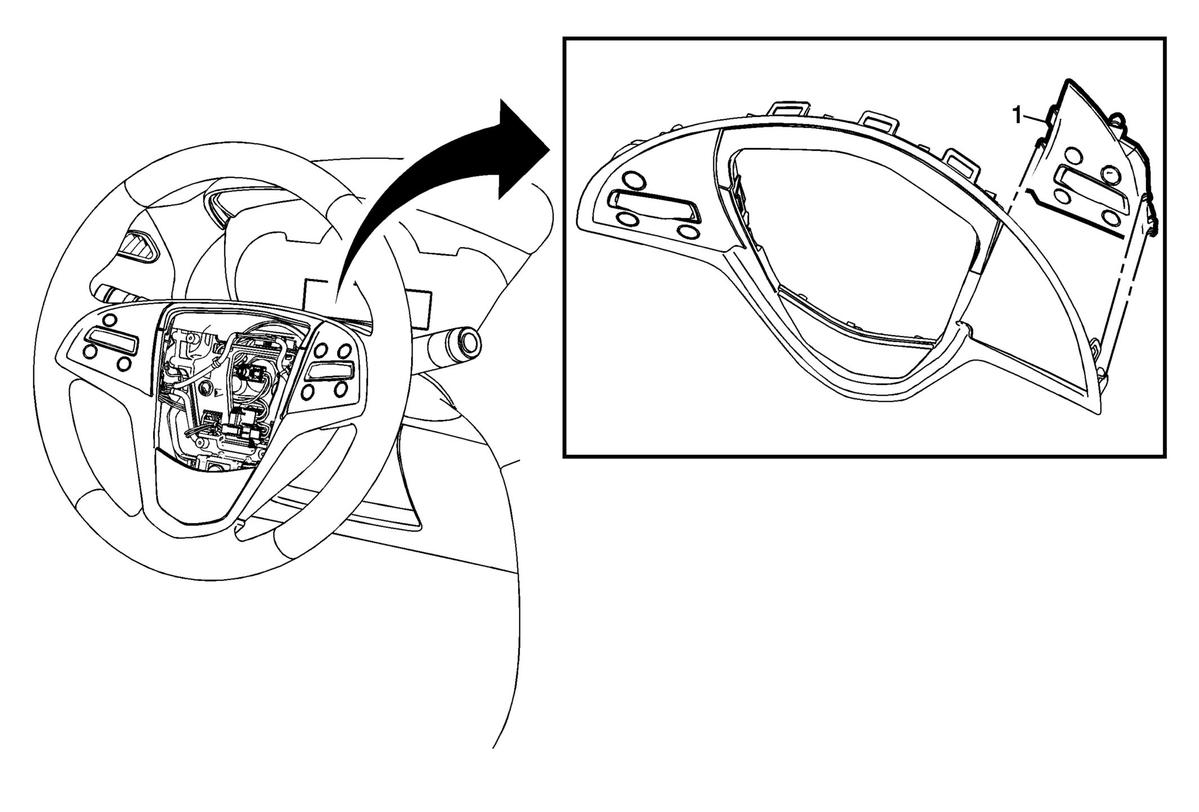

Fig 1: Radio Control Switch - Steering Wheel

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Steering Wheel Airbag Replacement Steering Wheel Spoke Cover Replacement
1	Radio Control Switch Procedure Release the retaining tabs and remove the radio control switch from the steering wheel spoke cover.
