Front Seat Lane Departure Warning Actuator Replacement

WARNING: This page is about a different car, the 2016 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

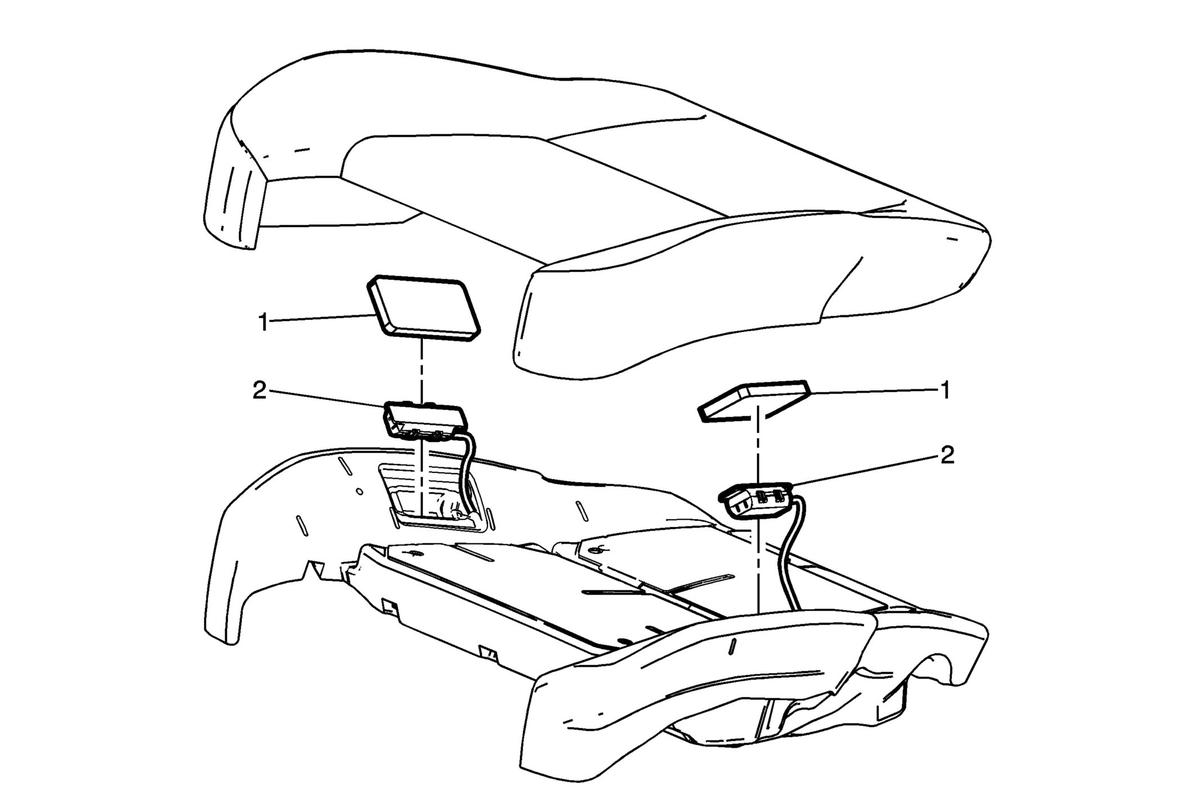

Fig 1: Front Seat Lane Departure Warning Actuator

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to SIR Warning . Preliminary Procedure Remove the front seat. Refer to Driver or Passenger Seat Removal and Installation . Remove the front seat cushion cover and pad. Refer to Front Seat Cushion Cover and Pad Replacement and Front Seat Cushion Cover and Pad Replacement (with W2E) .
1	Front Seat Lane Departure Warning Actuator Topper Pad (Qty: 2) Procedure Gently peel away the topper pad from the seat cushion pad. When removing the topper pad be careful not to damage the motor. NOTE: The topper pad must be replaced every time the motor is replaced.
2	Front Seat Lane Departure Warning Actuator Motor (Qty: 2) Procedure Disconnect the actuator electrical connector. Remove the original actuator and discard it. Note the routing of the original wire and harness location for installation.

Callout

Component Name

WARNING: Refer to SIR Warning .

Preliminary Procedure

Remove the front seat. Refer to Driver or Passenger Seat Removal and Installation .
Remove the front seat cushion cover and pad. Refer to Front Seat Cushion Cover and Pad Replacement and Front Seat Cushion Cover and Pad Replacement (with W2E) .

Front Seat Lane Departure Warning Actuator Topper Pad (Qty: 2)

Procedure

Gently peel away the topper pad from the seat cushion pad.
When removing the topper pad be careful not to damage the motor.

NOTE: The topper pad must be replaced every time the motor is replaced.

Front Seat Lane Departure Warning Actuator Motor (Qty: 2)

Procedure

Disconnect the actuator electrical connector.
Remove the original actuator and discard it.
Note the routing of the original wire and harness location for installation.
