Outside Rearview Mirror Folding Control Module Replacement
WARNING: This page is about a different car, the 2016 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

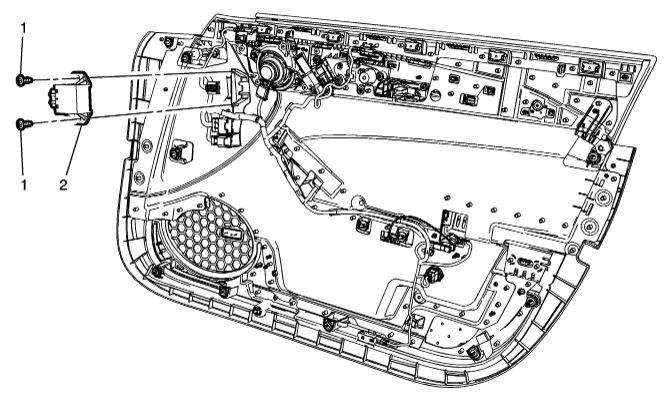

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front side door trim panel. Refer to Front Side Door Trim Replacement . |
|
| 1 | Outside Rearview Mirror Folding Control Module Bolts (Qty: 2)
CAUTION:
Refer to Fastener Caution
. Tighten 2.5 N.m (22 lb in) |
| 2 | Outside Rearview Mirror Folding Control Module Procedure Disconnect electrical connector. |
