Audio Amplifier Power, Ground and Serial Data

WARNING: This page is about a different car, the 2015 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

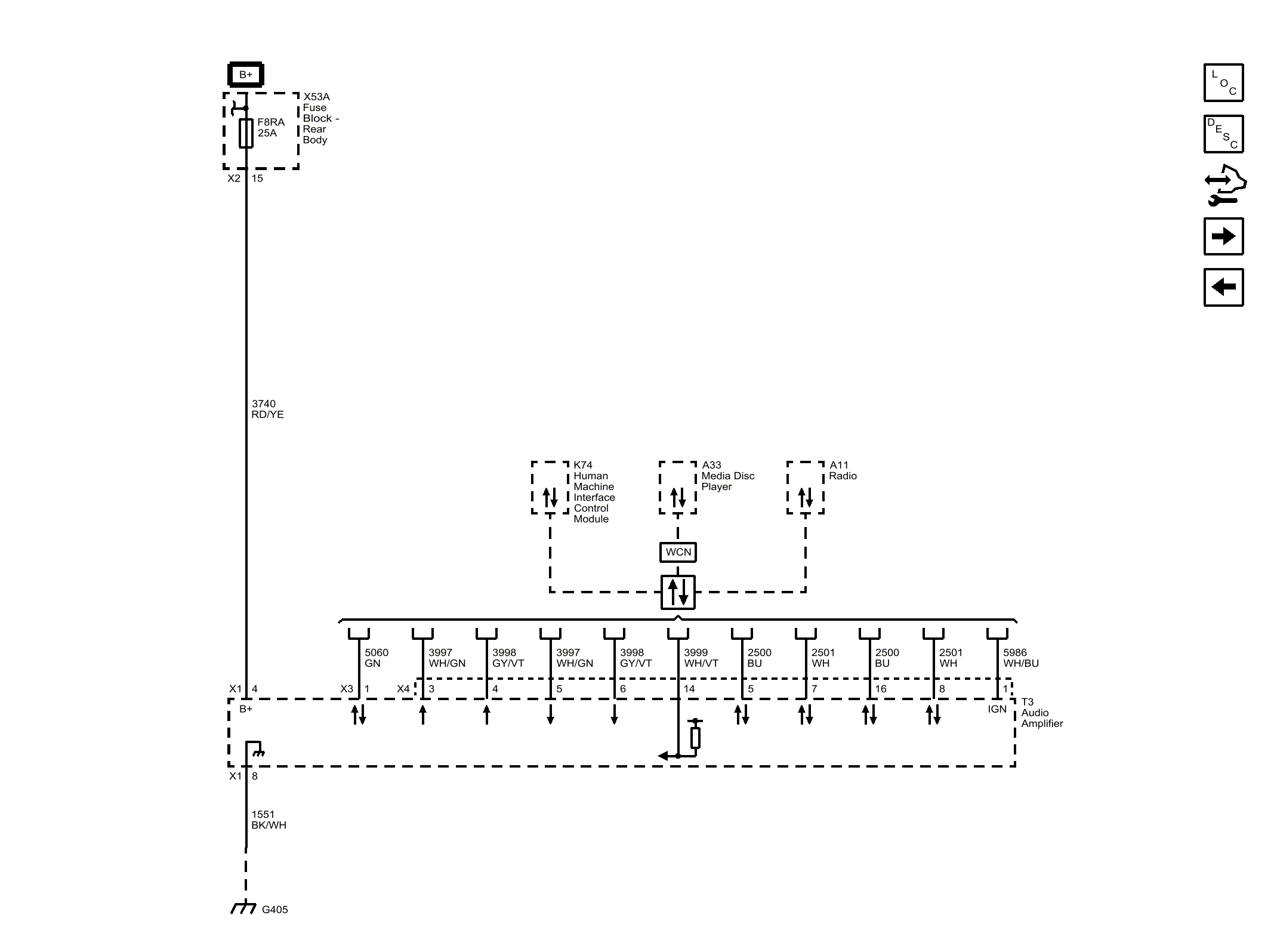

Fig 1: Audio Amplifier Power, Ground and Serial Data
GM3705145Courtesy of GENERAL MOTORS COMPANY
