Section 43 (Cellular System, Entertainment System, And Navigation System - Sedan)
>>
Schematic Wiring Diagrams
>>
Radio/Navigation System Wiring Schematics
>>
Auxiliary Inputs (except IO6 with MAW)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Auxiliary Inputs (except IO6 with MAW)
WARNING:
This page is about a different car, the 2015 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

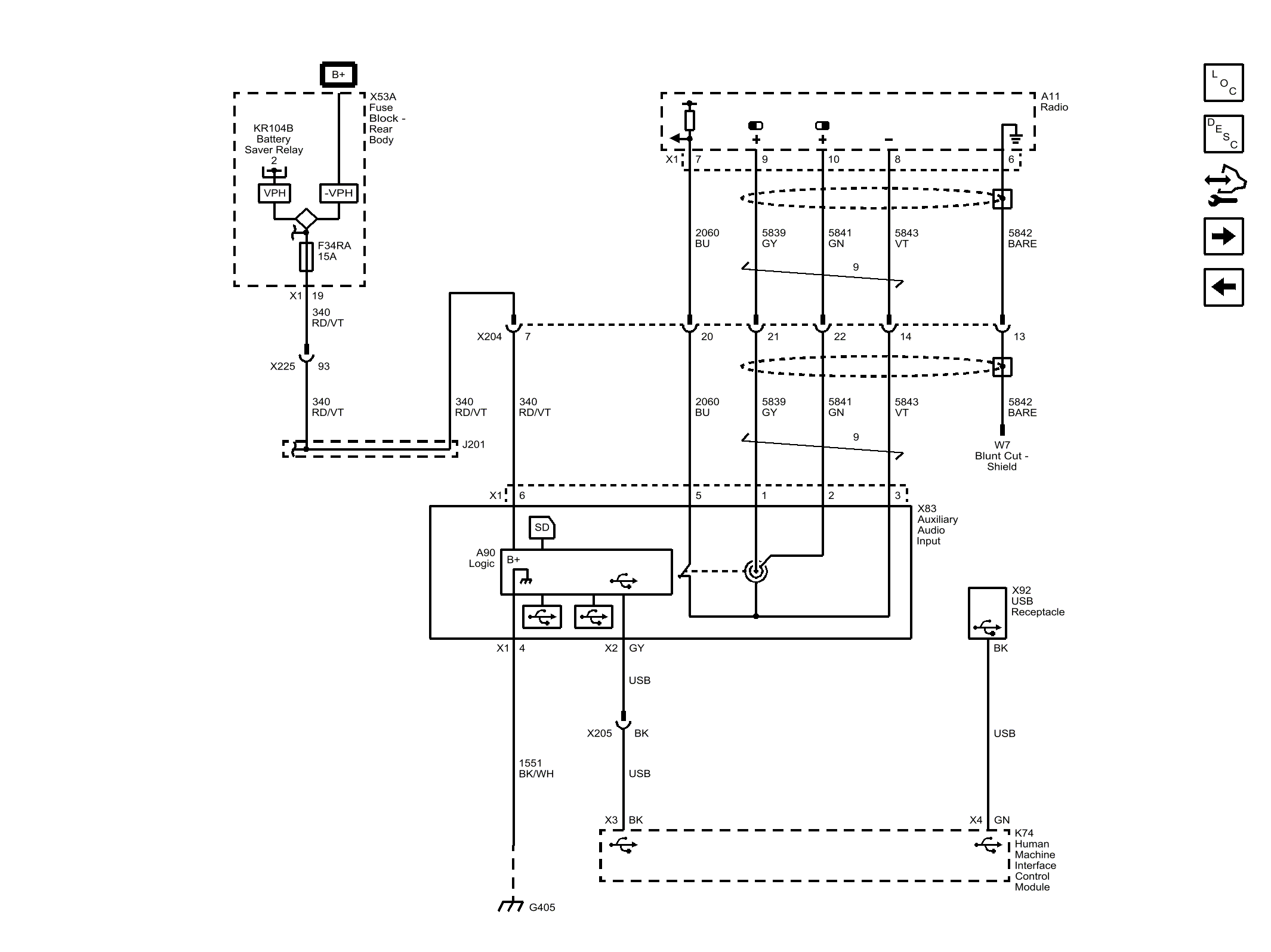

Fig 1: Auxiliary Inputs (except IO6 with MAW)
Courtesy of GENERAL MOTORS COMPANY
