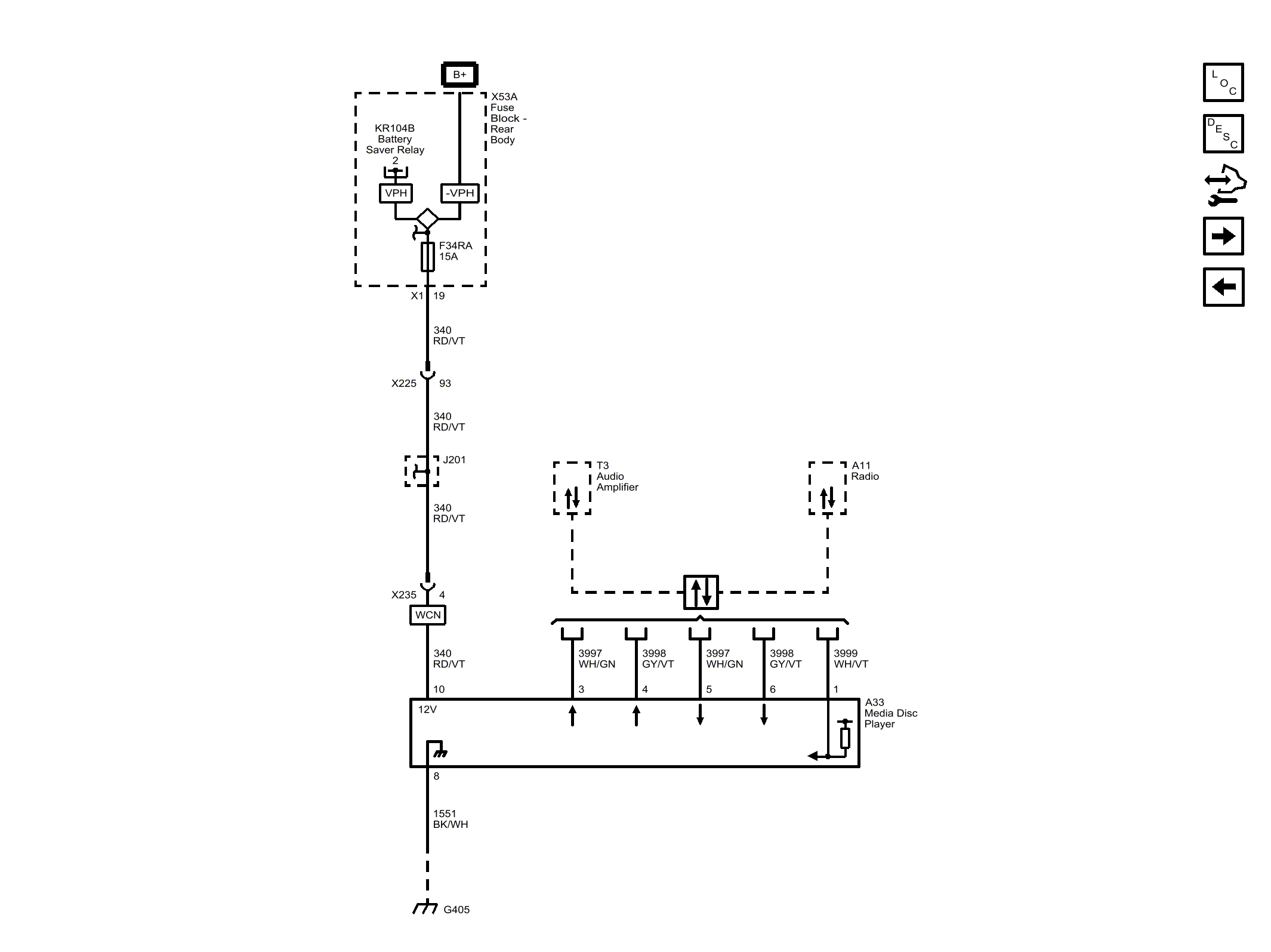

Media Disc Player Power, Ground and Serial Data (WCN)

WARNING: This page is about a different car, the 2015 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
