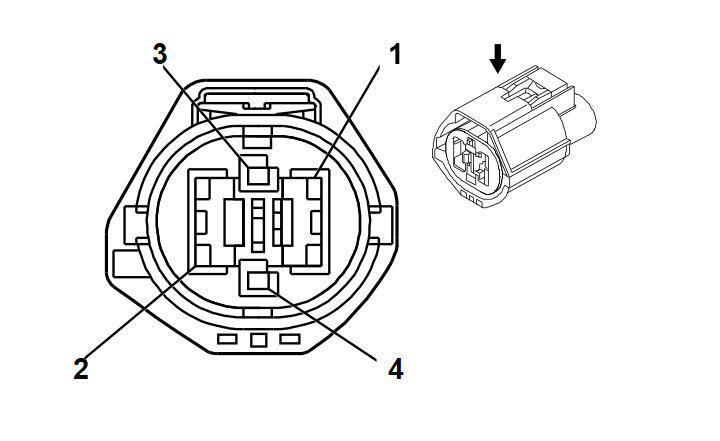

K22 Cooling Fan Control Module
WARNING: This page is about a different car, the 2015 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
|
|
Connector Part Information
- Harness Type: Forward Lamp
- OEM Connector: 7283-8496-30
- Service Connector: 19115593
- Description: 4-Way F Mixed Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-22 (RD) |
Not Required |
Not Required |
Not Required |
Not Required |
Not Required |
| II |
Not Required |
J-35616-2A (GY) |
Not Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
5 |
BK |
650 |
Ground |
I |
- |
| 2 |
5 |
RD/YE |
1142 |
Battery Positive Voltage |
I |
- |
| 3 |
- |
- |
- |
Not Occupied |
- |
- |
| 4 |
0.35 |
WH/BK |
2366 |
Cooling Fan Control Relay Speed Signal |
II |
- |
