Rear of Front Fascia Components (LT4)

Items
1. B306A Parking Assist Sensor - Front Left Outer (UFQ) B306A Parking Assist Sensor - Front Left Outer
2. B306B Parking Assist Sensor - Front Left Middle (UFQ) B306B Parking Assist Sensor - Front Left Middle
3. B82F Pedestrian Impact Detection Sensor - Upper Beam Front (B3T) B82F Pedestrian Impact Detection Sensor - Upper Beam Front X1 B82F Pedestrian Impact Detection Sensor - Upper Beam Front X2
4. B306C Parking Assist Sensor - Front Right Middle (UFQ) B306C Parking Assist Sensor - Front Right Middle
5. B306D Parking Assist Sensor - Front Right Outer (UFQ) B306D Parking Assist Sensor - Front Right Outer
6. B306L Parking Assist Sensor - Side Right Front (UFQ) B166RF Advanced Parking Assist Side Object Sensor - Right Front
7. E2RF Side Marker Lamp - Right Front (TUJ) E2RF Side Marker Lamp - Right Front (TUJ+LT4)E2RF Side Marker Lamp - Right Front (TUJ-LT4)
8. B174R Frontview Camera - Fascia Right (UVJ) B174R Frontview Camera - Fascia Right
9. B174L Frontview Camera - Fascia Left (UVJ) B174L Frontview Camera - Fascia Left
10. E2LF Side Marker Lamp - Left Front (TUJ) E2LF Side Marker Lamp - Left Front (TUJ+LT4)E2LF Side Marker Lamp - Left Front (TUJ-LT4)
11. B306K Parking Assist Sensor - Side Left Front (UFQ) B166LF Advanced Parking Assist Side Object Sensor - Left Front

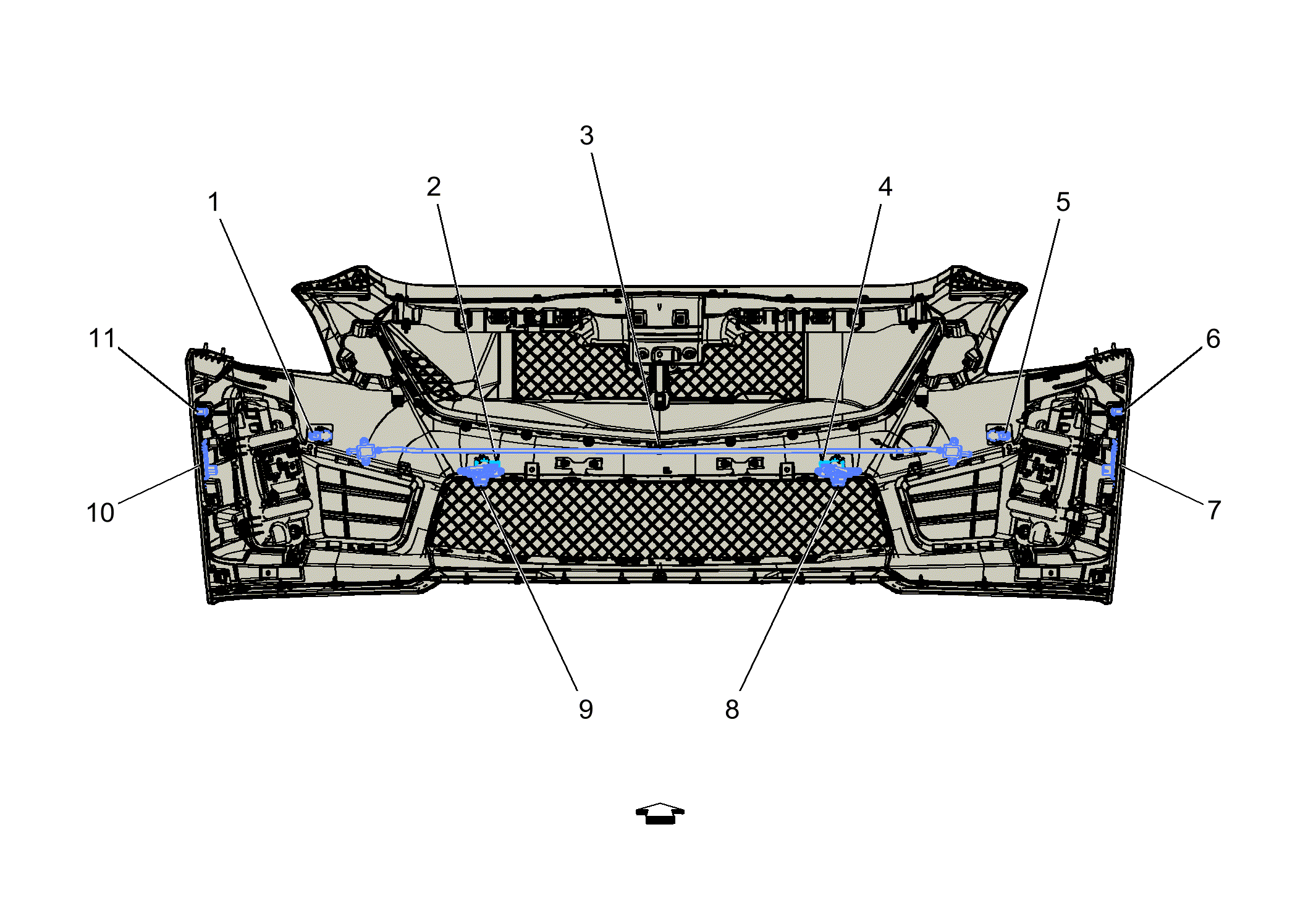

Fig 1: Rear of Front Fascia Components (LT4)

Courtesy of GENERAL MOTORS COMPANY
