Passenger Compartment Components - Passenger Seat Components (W2E)

Items
1. E14C Seat Heating Element - Passenger Back (KA1) E14C Seat Heating Element - Passenger Back (KA1)
2. B88P Seat Belt Switch - Passenger
3. B153P Seat Belt Buckle - Passenger B88P Seat Belt Switch - Passenger
4. K134P Seat Bolster Memory Control Module - Passenger (W2E) K134P Seat Bolster Memory Control Module - Passenger (W2E)
5. F106RF Seat Side Air Bag - Right Front F106RF Seat Side Air Bag - Right Front
6. G31P Seat Lumbar/Bolster Pump - Passenger G31P Seat Lumbar/Bolster Pump - Passenger (-W2E)G31P Seat Lumbar/Bolster Pump - Passenger (W2E)
7. M56P Seat Recline Motor - Passenger M56P Seat Recline Motor - Passenger M56P Seat Recline Motor - Passenger (W2E)
8. K29F Seat Heating Control Module - Front (KA1) K29F Seat Heating Control Module - Front X1 (KA1)K29F Seat Heating Control Module - Front X2 (KA1)
9. M50P Seat Front Vertical Motor - Passenger M50P Seat Front Vertical Motor - Passenger
10. K40P Seat Memory Control Module - Passenger (W2E) K40P Seat Memory Control Module - Passenger X1 (W2E)K40P Seat Memory Control Module - Passenger X2 (W2E)K40P Seat Memory Control Module - Passenger X3 (W2E)K40P Seat Memory Control Module - Passenger X5 (W2E)
11. M51P Seat Horizontal Motor - Passenger M51P Seat Horizontal Motor - Passenger
12. M55P Seat Rear Vertical Motor - Passenger M55P Seat Rear Vertical Motor - Passenger
13. F113P Seat Belt Anchor Pretensioner - Passenger F113P Seat Belt Anchor Pretensioner - Passenger
14. B60 Passenger Presence Sensor
15. S64P Seat Adjuster Switch - Passenger S64P Seat Adjuster Switch - Passenger (W2E)S64P Seat Adjuster Switch - Passenger X1 S64P Seat Adjuster Switch - Passenger X2
16. E14D Seat Heating Element - Passenger Cushion (KA1) E14D Seat Heating Element - Passenger Cushion (KA1)

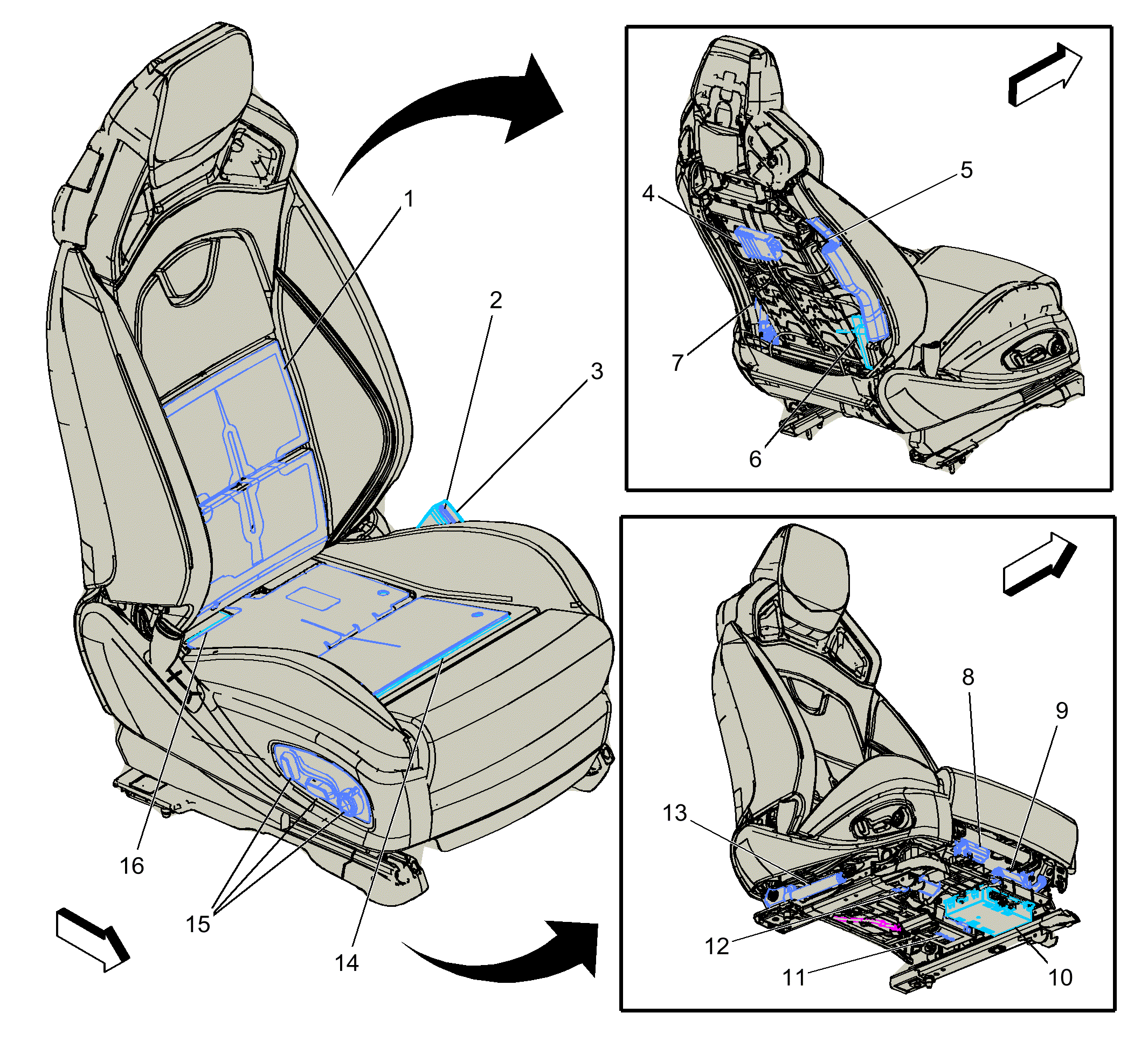

Fig 1: Passenger Compartment Components - Passenger Seat Components (W2E)

Courtesy of GENERAL MOTORS COMPANY
