Passenger Compartment Components - Passenger Seat Components

Items
1. M73B Seat Blower Motor - Passenger Back (KB6) M73B Seat Blower Motor - Passenger Back (KB6)
2. F106RF Seat Side Air Bag - Right Front F106RF Seat Side Air Bag - Right Front
3. Q51P Seat Lumbar Support Valve Assembly - Passenger (-H2C) Q51P Seat Lumbar Support Valve Assembly - Passenger (-AQJ)
4. E14C Seat Heating Element - Passenger Back (KA1) E14C Seat Heating Element - Passenger Back (KA1)
5. Q10P Seat Side Bolster Adjuster Valve Assembly - Passenger (AQJ) Q10P Seat Side Bolster Adjuster Valve Assembly - Passenger (AQJ)
6. M56P Seat Recline Motor - Passenger M56P Seat Recline Motor - Passenger M56P Seat Recline Motor - Passenger (W2E)
7. B88P Seat Belt Switch - Passenger
8. B153P Seat Belt Buckle - Passenger B88P Seat Belt Switch - Passenger
9. E14D Seat Heating Element - Passenger Cushion (KA1) E14D Seat Heating Element - Passenger Cushion (KA1)
10. B60 Passenger Presence Sensor
11. S64P Seat Adjuster Switch - Passenger S64P Seat Adjuster Switch - Passenger (W2E)S64P Seat Adjuster Switch - Passenger X1 S64P Seat Adjuster Switch - Passenger X2
12. K85 Passenger Presence Module K85 Passenger Presence Module
13. F113P Seat Belt Anchor Pretensioner - Passenger F113P Seat Belt Anchor Pretensioner - Passenger
14. G31P Seat Lumbar/Bolster Pump - Passenger G31P Seat Lumbar/Bolster Pump - Passenger (-W2E)G31P Seat Lumbar/Bolster Pump - Passenger (W2E)
15. M55P Seat Rear Vertical Motor - Passenger M55P Seat Rear Vertical Motor - Passenger
16. K29F Seat Heating Control Module - Front (KA1) K29F Seat Heating Control Module - Front X1 (KA1)K29F Seat Heating Control Module - Front X2 (KA1)
17. M50P Seat Front Vertical Motor - Passenger M50P Seat Front Vertical Motor - Passenger
18. B62P Seat Position Sensor - Passenger B62P Seat Position Sensor - Passenger
19. M51P Seat Horizontal Motor - Passenger M51P Seat Horizontal Motor - Passenger
20. E8U Seat Courtesy Lamp - Right Rear E8U Seat Courtesy Lamp - Right Rear
21. M73D Seat Blower Motor - Passenger Cushion (KB6) M73D Seat Blower Motor - Passenger Cushion (KB6)

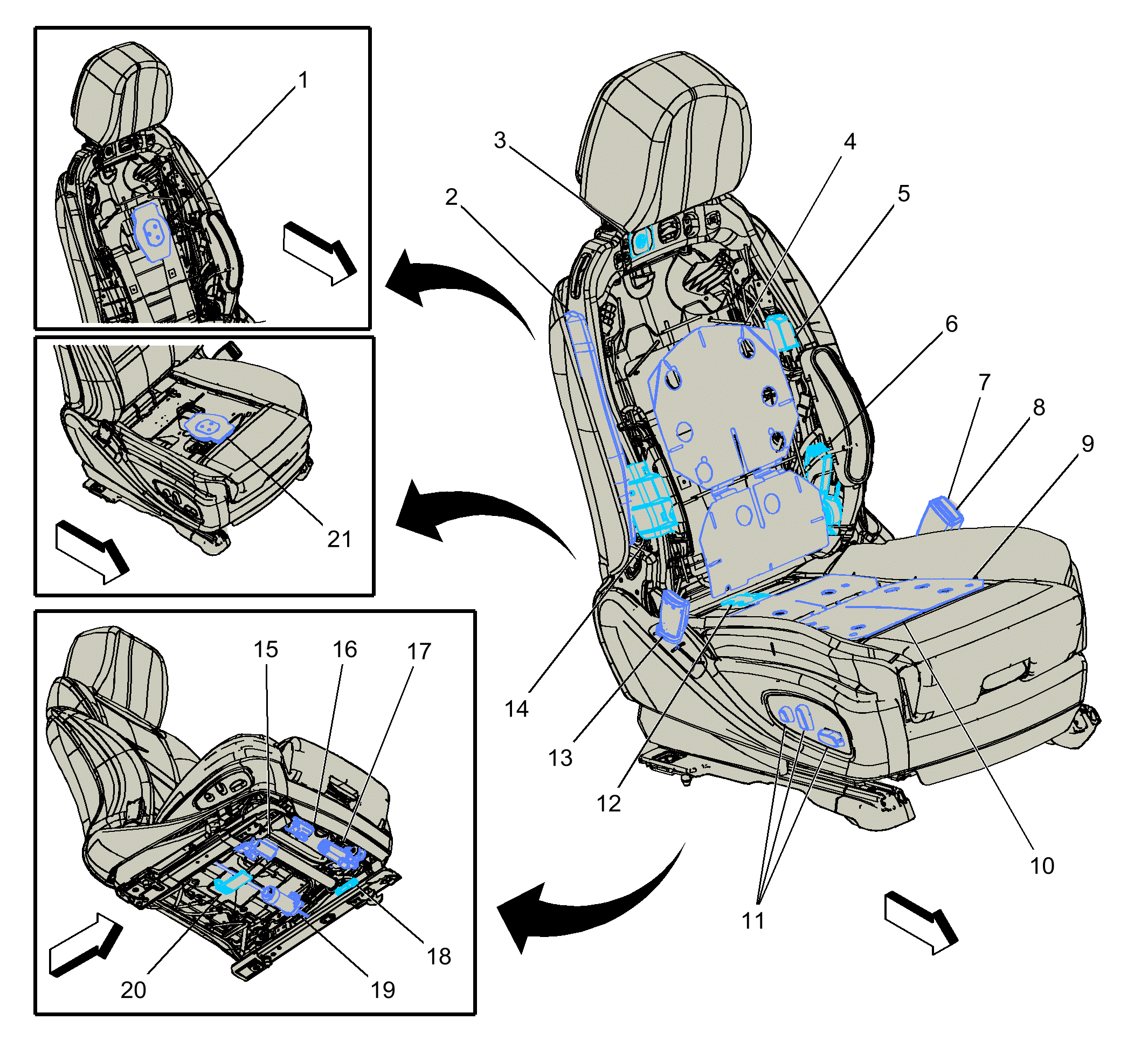

Fig 1: Passenger Compartment Components - Passenger Seat Components

Courtesy of GENERAL MOTORS COMPANY
