Engine Components - Left Rear (LGX)

Items
1. B75C Multifunction Intake Air Sensor B75C Multifunction Intake Air Sensor
2. B74 Manifold Absolute Pressure Sensor B74 Manifold Absolute Pressure Sensor (LF3/LGX)B74 Manifold Absolute Pressure Sensor (LT4)B74 Manifold Absolute Pressure Sensor (LTG)
3. B52C Heated Oxygen Sensor - Bank 1 Sensor 1 (LF3/LGX/LT4) B52C Heated Oxygen Sensor - Bank 1 Sensor 1 (LF3)B52C Heated Oxygen Sensor - Bank 1 Sensor 1 (LGX)B52C Heated Oxygen Sensor - Bank 1 Sensor 1 (LT4)
4. B52D Heated Oxygen Sensor - Bank 1 Sensor 2 (LF3/LGX/LT4) B52D Heated Oxygen Sensor - Bank 1 Sensor 2 (LF3)B52D Heated Oxygen Sensor - Bank 1 Sensor 2 (LGX)B52D Heated Oxygen Sensor - Bank 1 Sensor 2 (LT4)
5. G18 High Pressure Fuel Pump G18 High Pressure Fuel Pump (LF3)G18 High Pressure Fuel Pump (LTG)G18 High Pressure Fuel Pump (LGX)
6. B52F Heated Oxygen Sensor - Bank 2 Sensor 2 (LF3/LGX/LT4) B52F Heated Oxygen Sensor - Bank 2 Sensor 2 (LF3)B52F Heated Oxygen Sensor - Bank 2 Sensor 2 (LGX)B52F Heated Oxygen Sensor - Bank 2 Sensor 2 (LT4)
7. B52E Heated Oxygen Sensor - Bank 2 Sensor 1 (LF3/LGX/LT4) B52E Heated Oxygen Sensor - Bank 2 Sensor 1 (LF3)B52E Heated Oxygen Sensor - Bank 2 Sensor 1 (LGX)B52E Heated Oxygen Sensor - Bank 2 Sensor 1 (LT4)

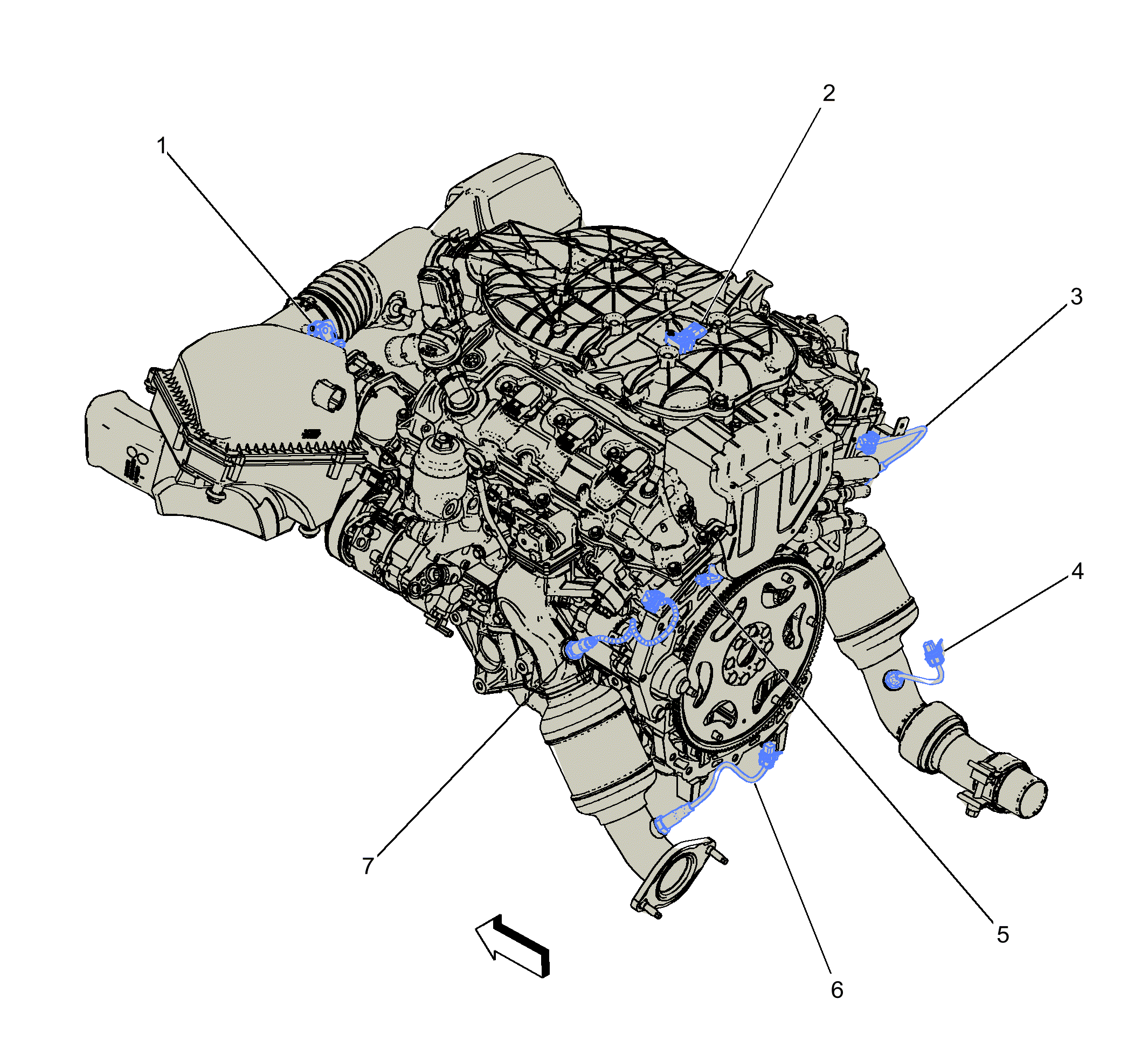

Fig 1: Engine Components - Left Rear (LGX)

Courtesy of GENERAL MOTORS COMPANY
