Preliminary Procedures
- Steering Linkage Outer Tie Rod Replacement (V-Series)
- Front Cradle Shear Plate Replacement (V - Series)
|

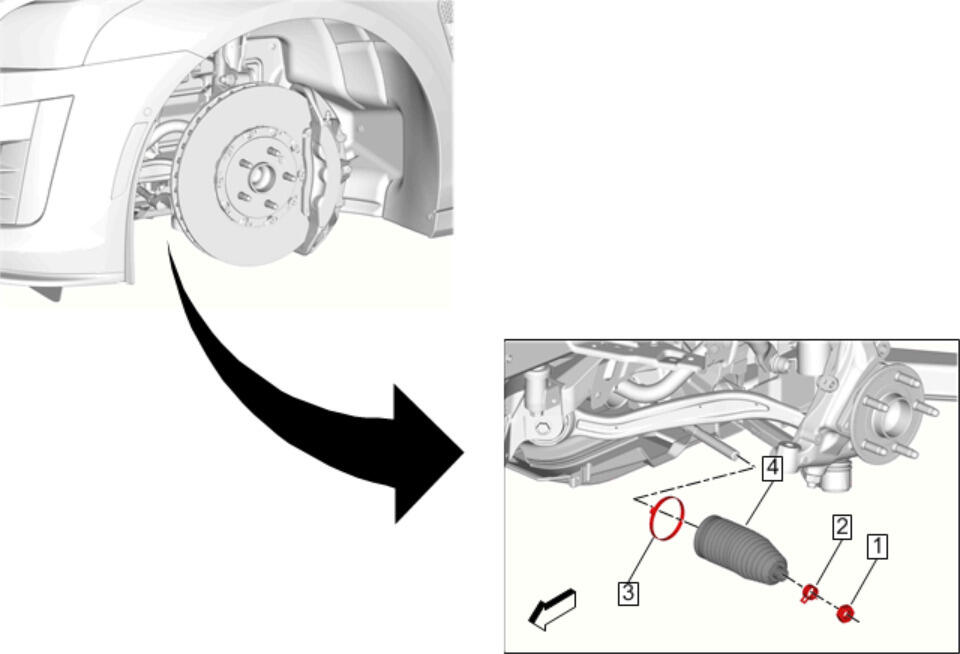

| 1 |
Steering Linkage Inner Tie Rod Nut
Procedure
Place match marks on the steering linkage inner tie rod nut and the steering linkage inner tie rod. |
| 2 |
Steering Gear Boot Outer Clamp |
| 3 |
Steering Gear Boot Inner Clamp Procedure
- Cut the steering gear boot inner clamp.
DISCARD the clamp.
- Use the DT-39510
pliers to install a NEW steering gear boot inner clamp.
Special Tools
DT-35910
Drive Axle Boot Clamp Pliers
Equivalent regional tools:Special Tools |
| 4 |
Steering Gear Boot Procedure
- After removing the steering gear boot, inspect the steering linkage inner tie rod for evidence of corrosion or contamination.If corrosion or contamination is evident, replace the steering gear. Electric Belt Drive Rack and Pinion Steering Gear Replacement (V-Series)
- Install the steering gear boot and ensure the boot is seated in the assembly groove of the steering gear before installing the steering gear boot clamps.
|
