B34 Engine Coolant Temperature Sensor (LGX)
WARNING: This page is about a different car, the 2016 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

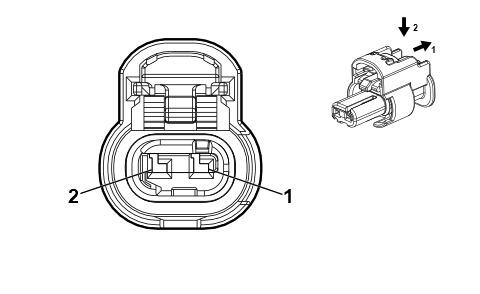

Connector Part Information
- Harness Type: Engine Coolant Sensor
- OEM Connector: 1-2203312-1
- Service Connector: 19330898
- Description: 2-Way F 1.2 MCON Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Available |
J-35616-16 (LT GN) |
J-38125-12A |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
BK/BN |
2761 |
Coolant Temperature Sensor Low Reference |
I |
- |
| 2 |
0.5 |
BU |
410 |
Engine Coolant Temperature Sensor Signal |
I |
- |
