G400, G401 and G402

WARNING: This page is about a different car, the 2016 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

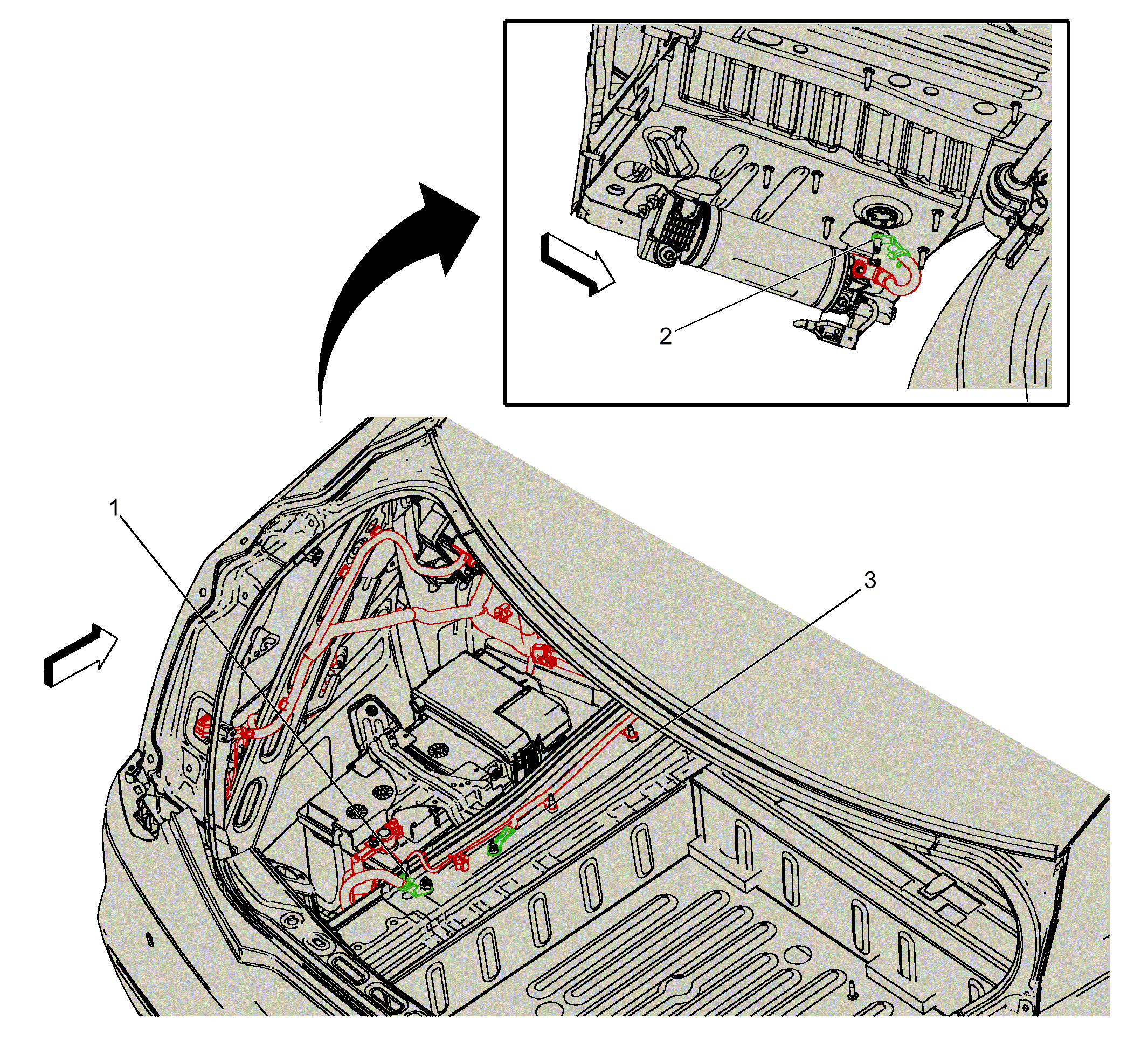

Fig 1: G400, G401 and G402
GM4376615Courtesy of GENERAL MOTORS COMPANY
Items
1. G400
2. G402 (KL9)
3. G401
