Headlamp Automatic Control Module Replacement (Daytime Running Lamp)
WARNING: This page is about a different car, the 2016 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

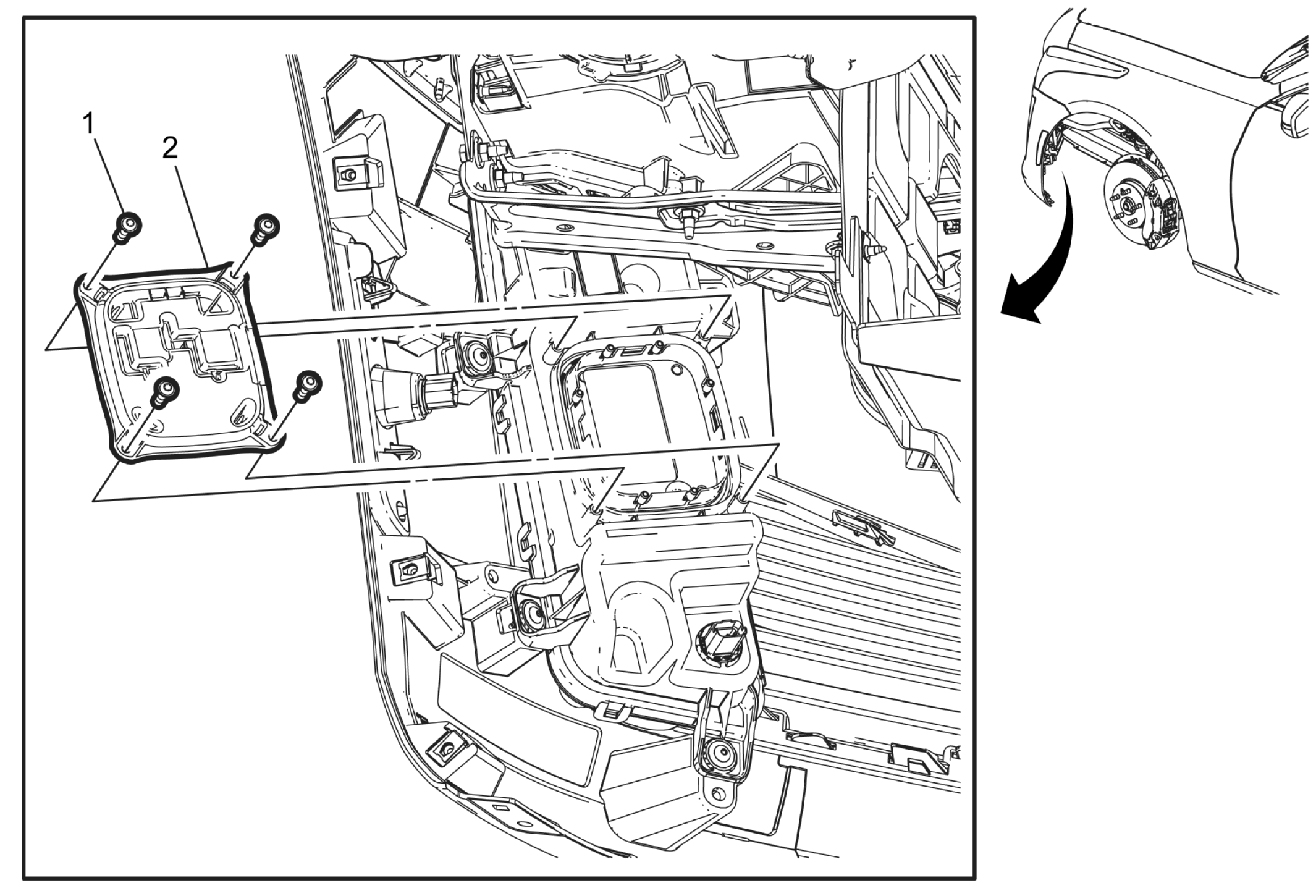

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement (V-Series) and Front Wheelhouse Liner Replacement (Non V-Series) . |
|
| 1 | Headlamp Automatic Control Module Bolt (Qty: 4)
CAUTION:
Refer to Fastener Caution
. Tighten 1.5 N.m (13 lb in) |
| 2 | Headlamp Automatic Control Module Procedure Pull the headlamp automatic control module straight out and disconnect the electrical connectors. |
