Radio Replacement

WARNING: This page is about a different car, the 2016 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

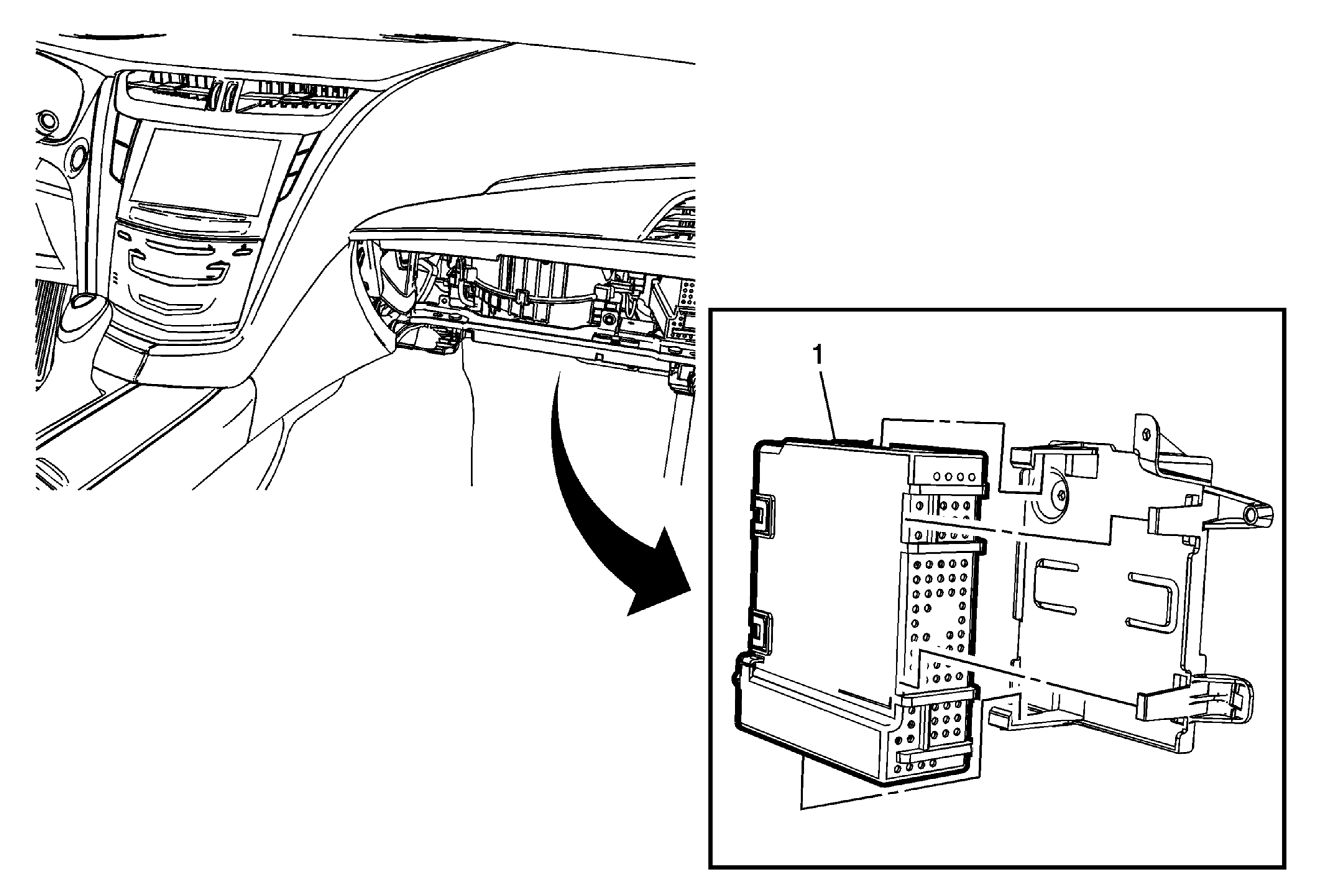

Fig 1: Radio

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the instrument panel compartment. Refer to Instrument Panel Compartment Replacement .
1	Radio Procedure Disconnect the electrical connections. Reposition the carpet as necessary to allow enough clearance for module removal. Slide module downward to release from bracket. Refer to Control Module References for programming and setup information.

Callout

Component Name

Preliminary Procedure
Remove the instrument panel compartment. Refer to Instrument Panel Compartment Replacement .

Radio

Procedure

Disconnect the electrical connections.
Reposition the carpet as necessary to allow enough clearance for module removal.
Slide module downward to release from bracket.
Refer to Control Module References for programming and setup information.
