Chassis Control Module Replacement

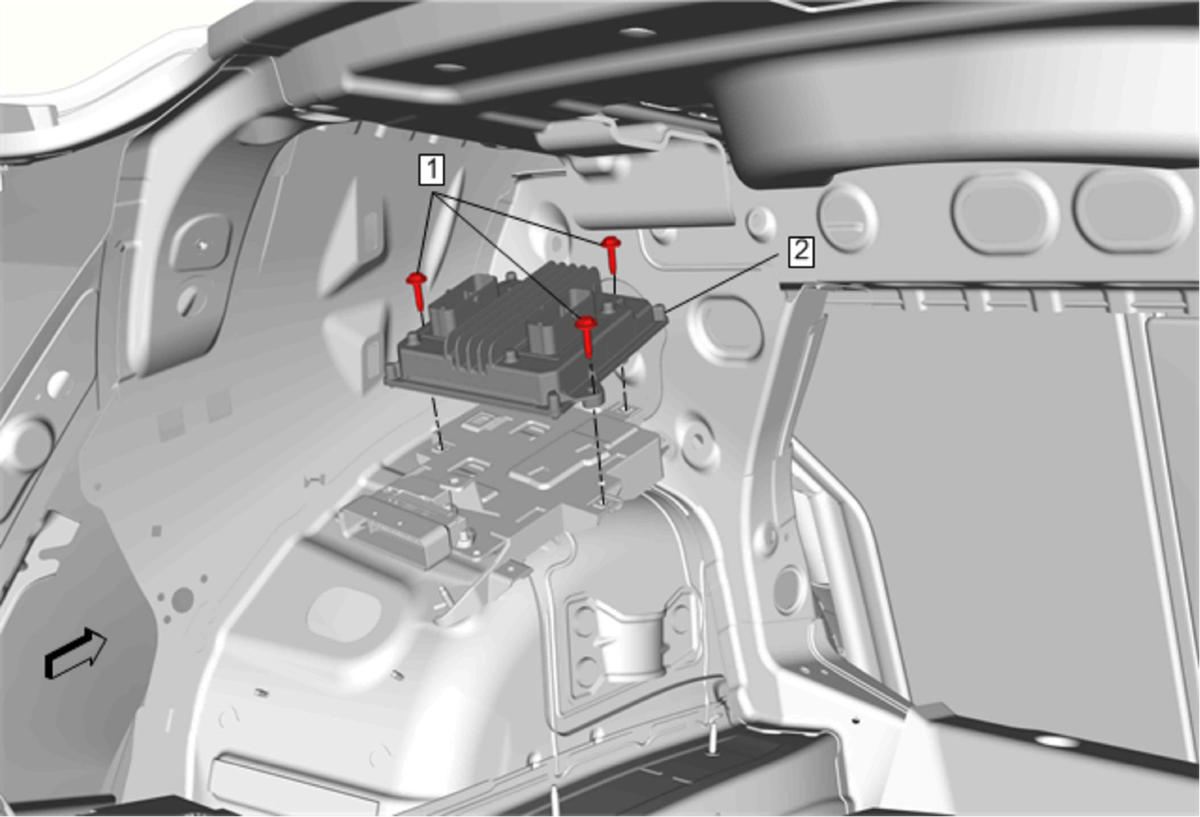

Fig 1: Chassis Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Open the left side rear compartment access cover.
1	Chassis Control Module Fastener (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 7 N.m (62 lb in)
2	Chassis Control Module Procedure Disconnect the electrical connector. If replacing, reprogram the module. Control Module References

Callout

Component Name

Preliminary Procedure
Open the left side rear compartment access cover.

Chassis Control Module Fastener (Qty: 3)

CAUTION:

Tighten
7 N.m (62 lb in)

Chassis Control Module

Procedure
