Fuel Pressure Sensor Replacement

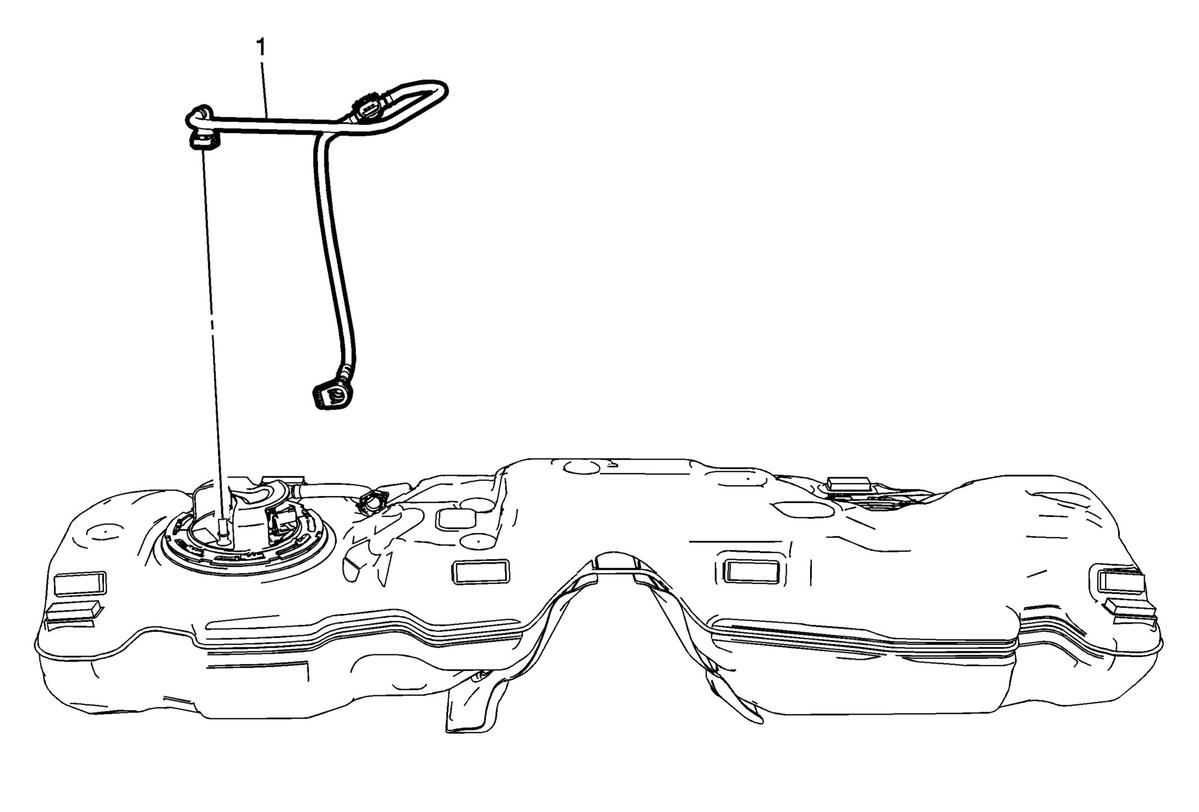

Fig 1: Fuel Pressure Sensor
GM2812117Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Fuel Tank Replacement
1 Fuel Pressure Sensor
NOTE:

Fuel pressure sensor is serviced as part of fuel pump fuel feed hose assembly.


Procedure
Disconnect the fuel pump fuel feed hose from the fuel tank fuel pump module. Plastic Collar Quick Connect Fitting Service
