Keyless Entry - Active

WARNING: This page is about a different car, the 2016 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

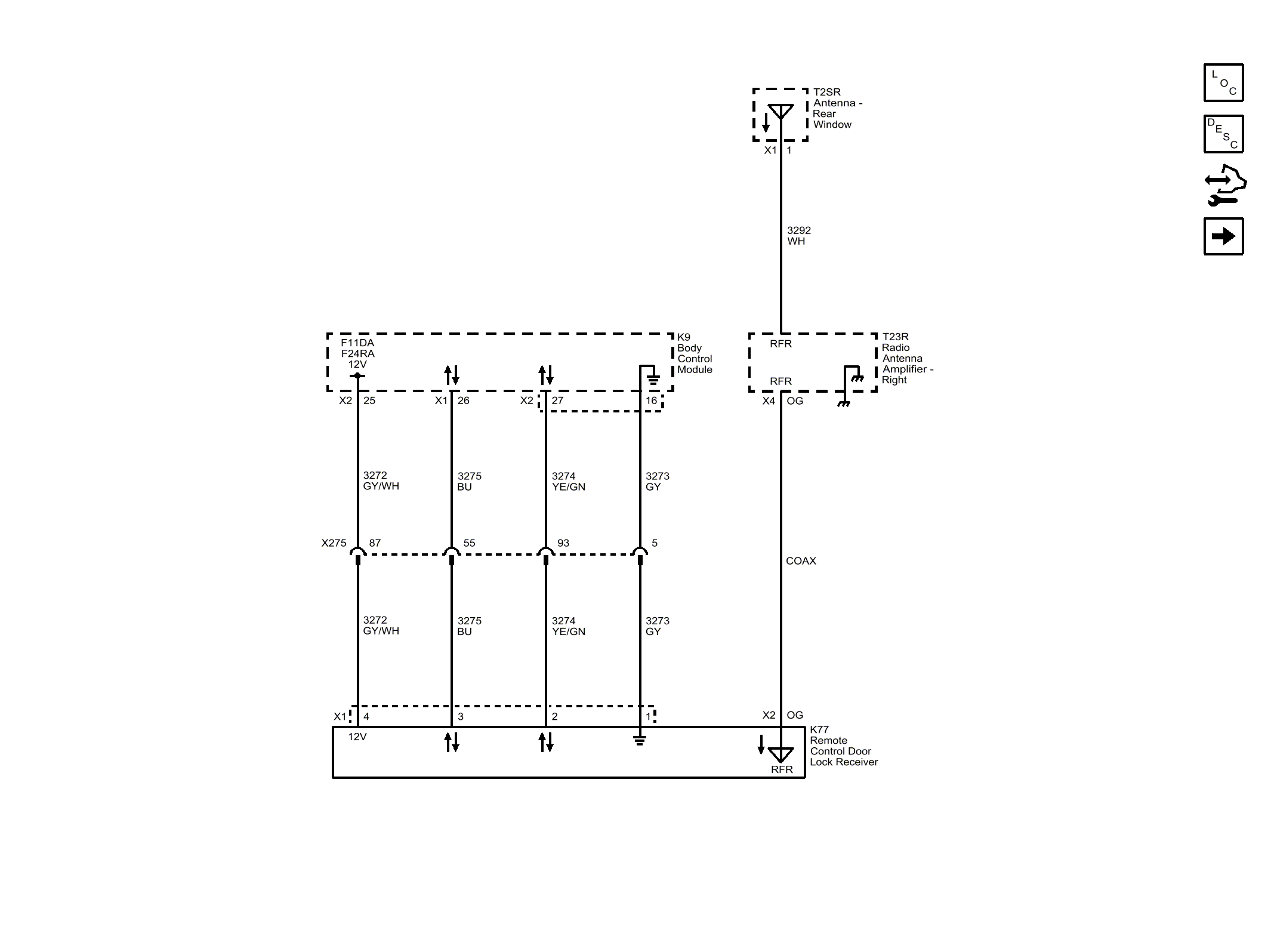

Fig 1: Keyless Entry - Active
GM4078898Courtesy of GENERAL MOTORS COMPANY
