Disc Player Replacement
WARNING: This page is about a different car, the 2016 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

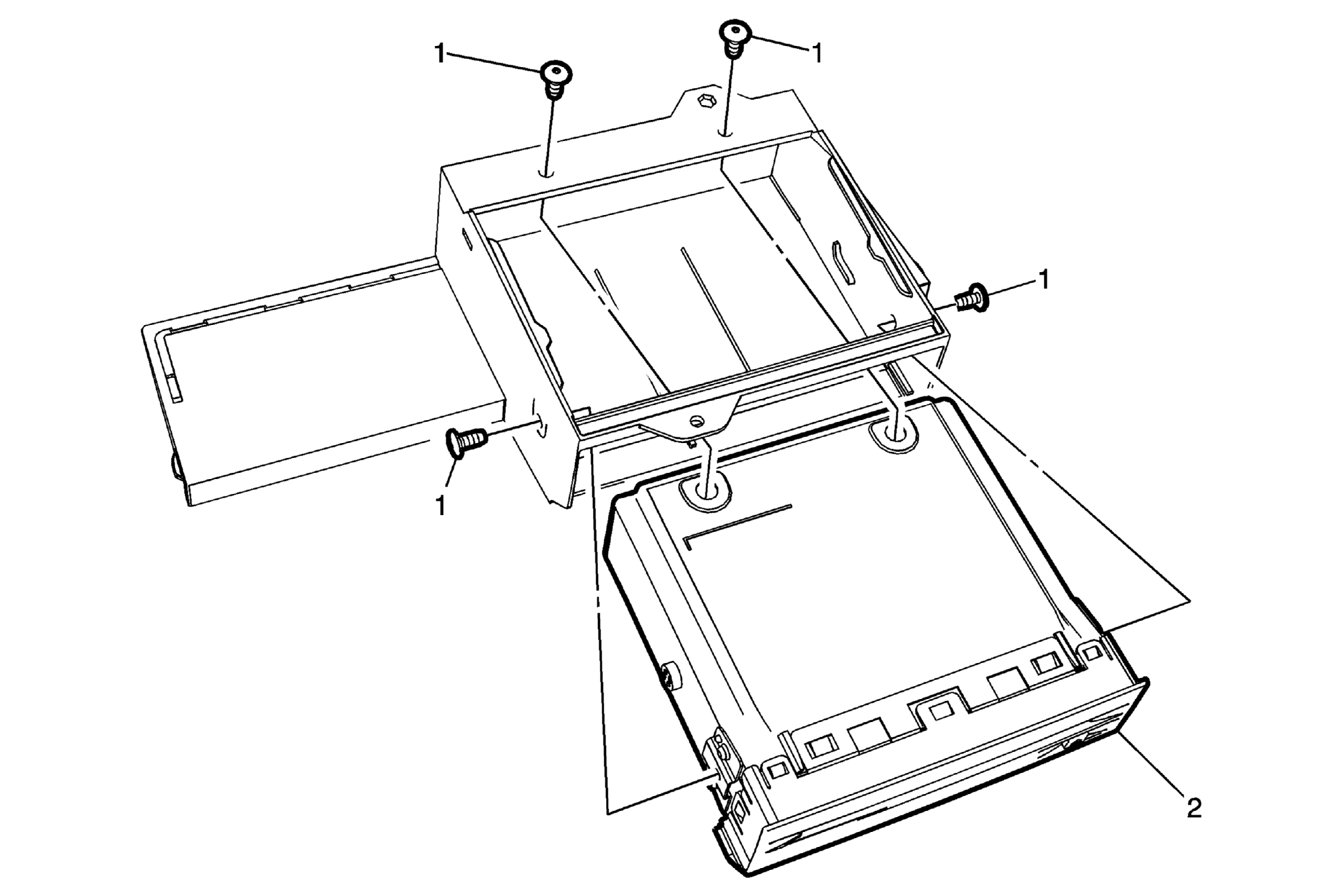

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the instrument panel compartment shelf. Refer to Instrument Panel Compartment Shelf Replacement . |
|
| 1 | Audio Disc Player Fasteners (Qty: 4)
CAUTION:
Refer to Fastener Caution
. Tighten 4.7 N.m (42 lb in) |
| 2 | Audio Disc Player |
