Auxiliary Inputs (IO6 with MAW)

WARNING: This page is about a different car, the 2016 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

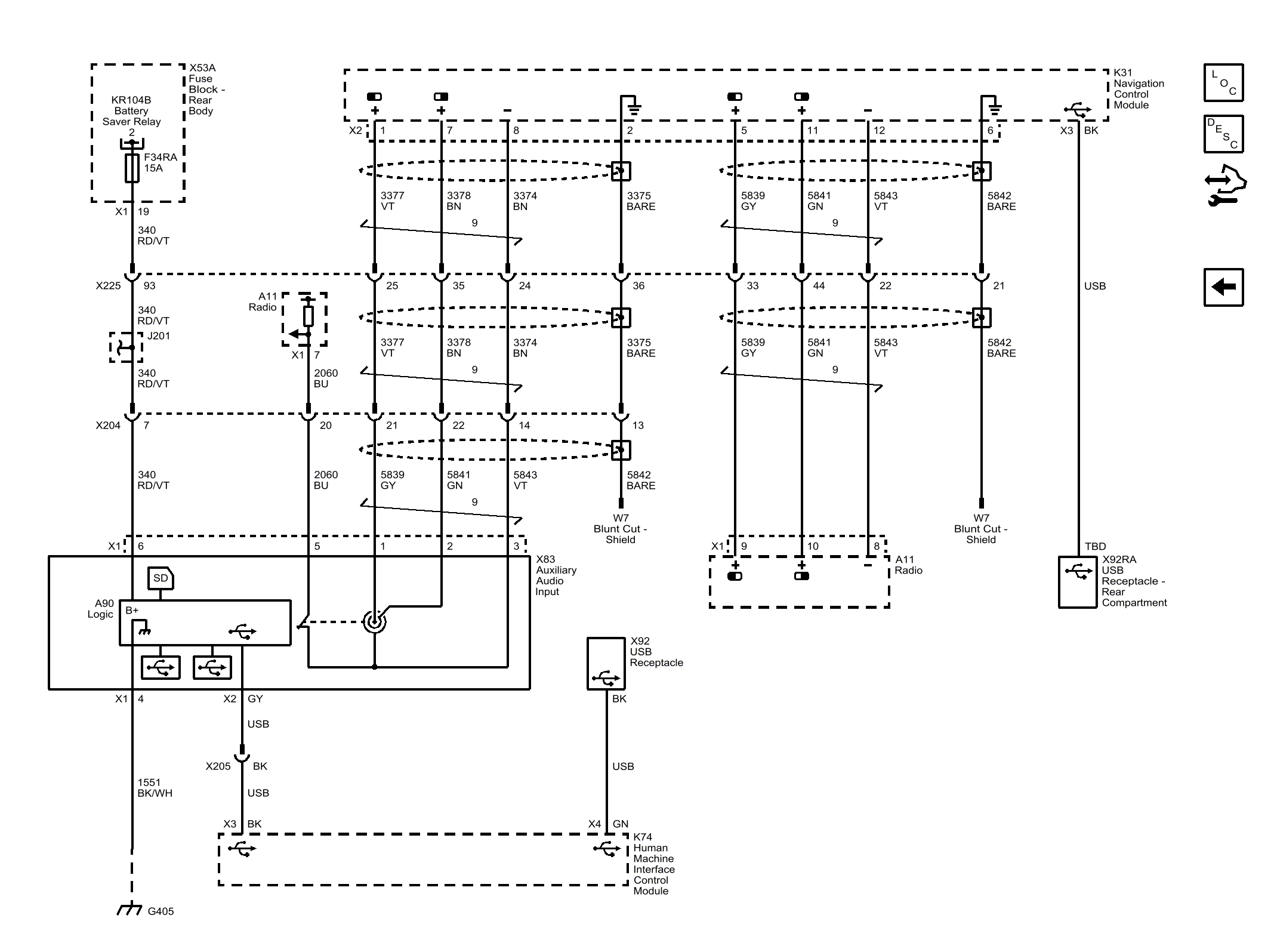

Fig 1: Auxiliary Inputs (IO6 with MAW)
GM4078467Courtesy of GENERAL MOTORS COMPANY
