Curb View Vision - Power, Ground, Serial Data and Rear Camera (UVJ)

WARNING: This page is about a different car, the 2016 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

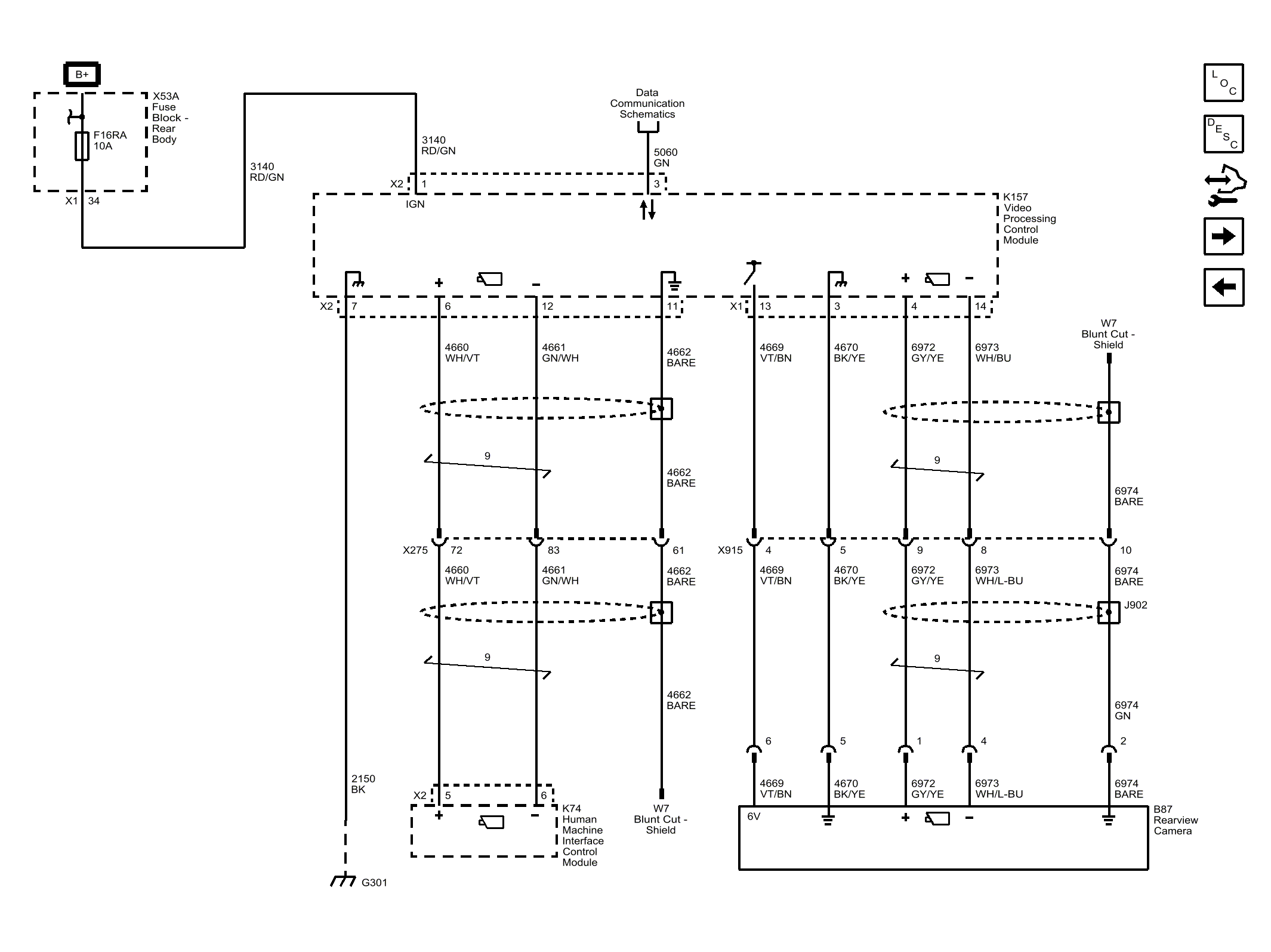

Fig 1: Curb View Vision - Power, Ground, Serial Data and Rear Camera (UVJ)
GM4296653Courtesy of GENERAL MOTORS COMPANY
