Audio and Video Module Cable Replacement

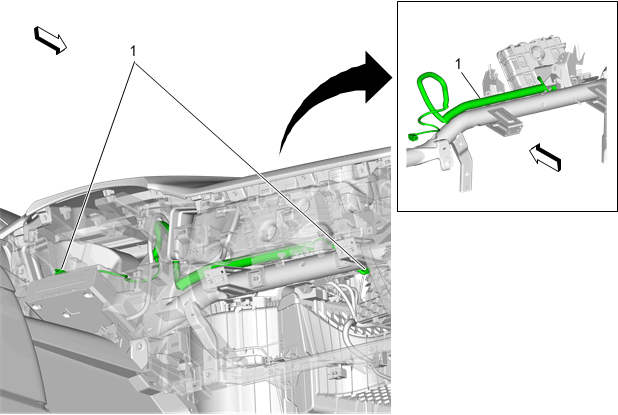

Fig 1: Audio and Video Module Cable
GM4176802Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedure

  1. Instrument Panel Compartment Replacement (Chevrolet / GMC)Instrument Panel Compartment Replacement (Cadillac)
  2. Radio Control Assembly Replacement (Chevrolet / GMC) Radio Control Assembly Replacement (Cadillac)
1 Audio and Video Module Cable

Procedure

  1. Disconnect the electrical connectors.
  2. If the cable is taped into the wiring harness, cut the ends off the old cable and route the new cable as close to the old one as possible. Use tie straps to secure the new cable.
