Communication Interface Module Bracket Replacement (Cadillac)

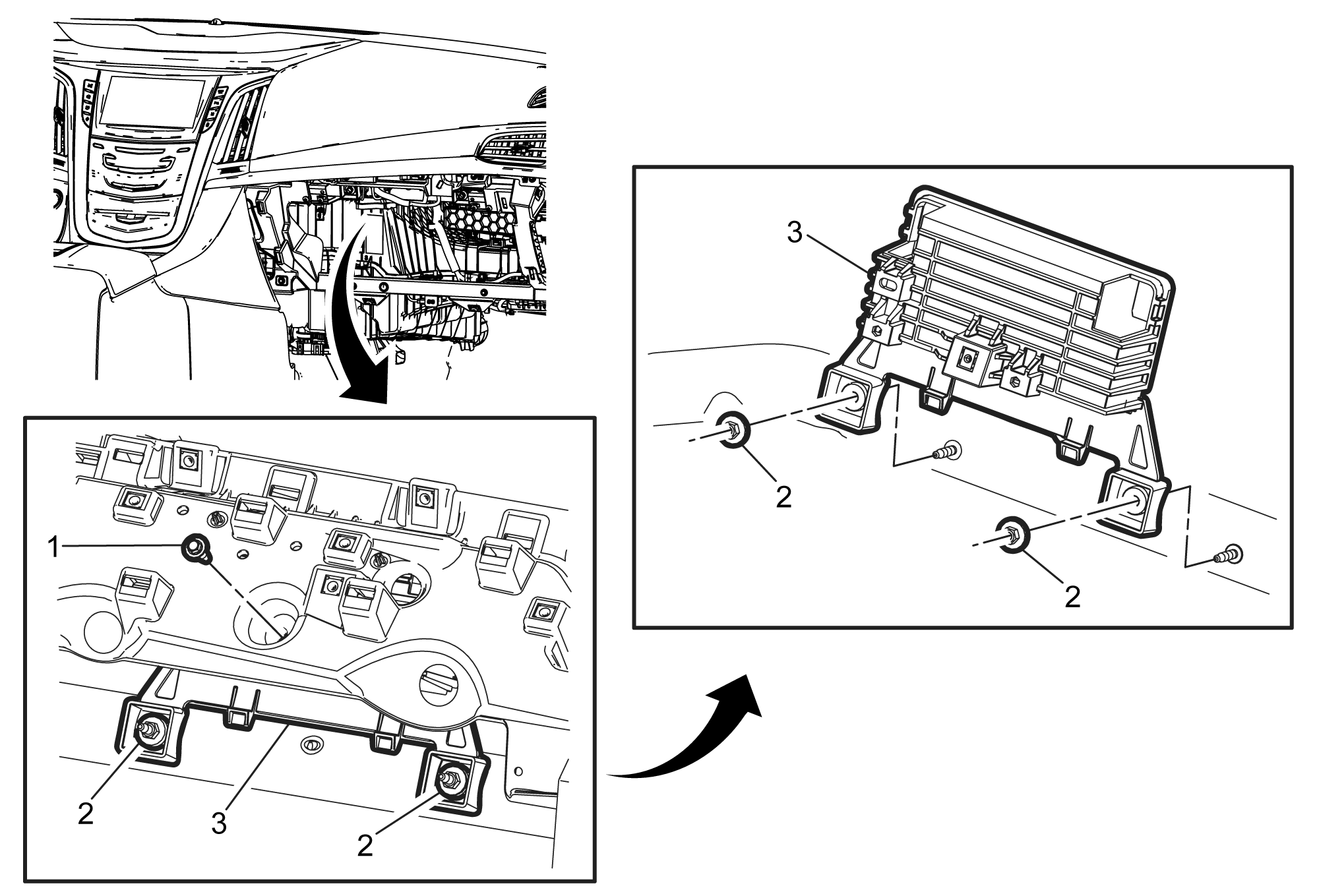

Fig 1: Communication Interface Module Bracket (Cadillac)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Instrument Panel Lower Trim Panel Replacement (Cadillac)
1	Communication Interface Module Bracket Bolt CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Communication Interface Module Bracket Nut (Qty: 2) Tighten 4 N.m (35 lb in)
3	Communication Interface Module Bracket Procedure Disconnect the electrical connectors and remove the wiring harness from the module and bracket. Transfer components as necessary.
