Communication Interface Module Bracket Replacement (Chevrolet / GMC)

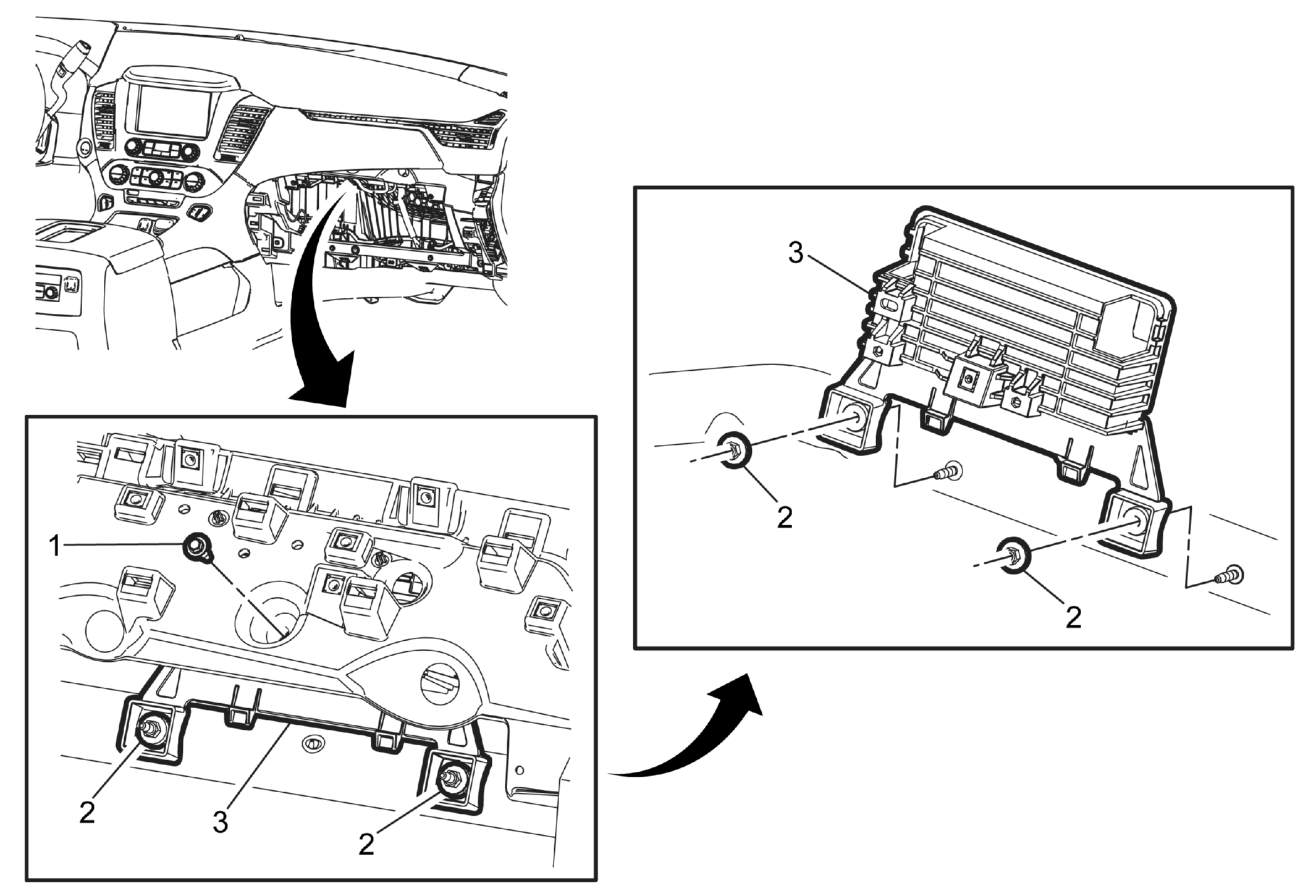

Fig 1: Communication Interface Module Bracket (Chevrolet / GMC)
GM3634747Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the instrument panel compartment. Refer to Instrument Panel Compartment Replacement (Chevrolet / GMC) .
1 Communication Interface Module Bracket Bolt
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb in)
2 Communication Interface Module Bracket Nuts (Qty: 2)
Tighten
4 N.m (35 lb in)
3 Communication Interface Module Bracket

Procedure

  1. Disconnect the electrical connections.
  2. Transfer components, as necessary.
