Media Disc Player Power, Ground and Serial Data

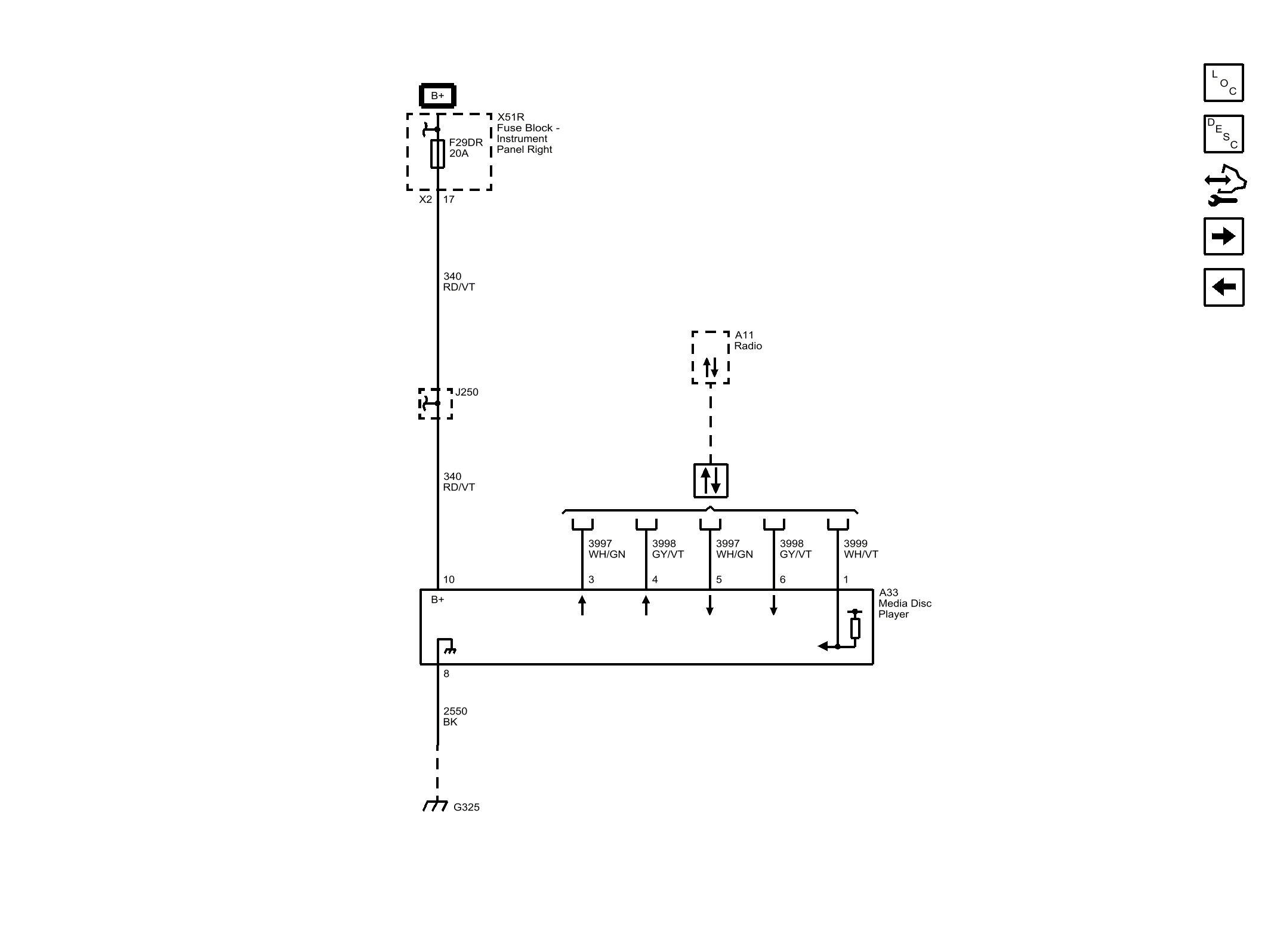

Fig 1: Media Disc Player Power, Ground and Serial Data
GM4500246Courtesy of GENERAL MOTORS COMPANY
