Headlamp Control Module Replacement (Multifunction LED)

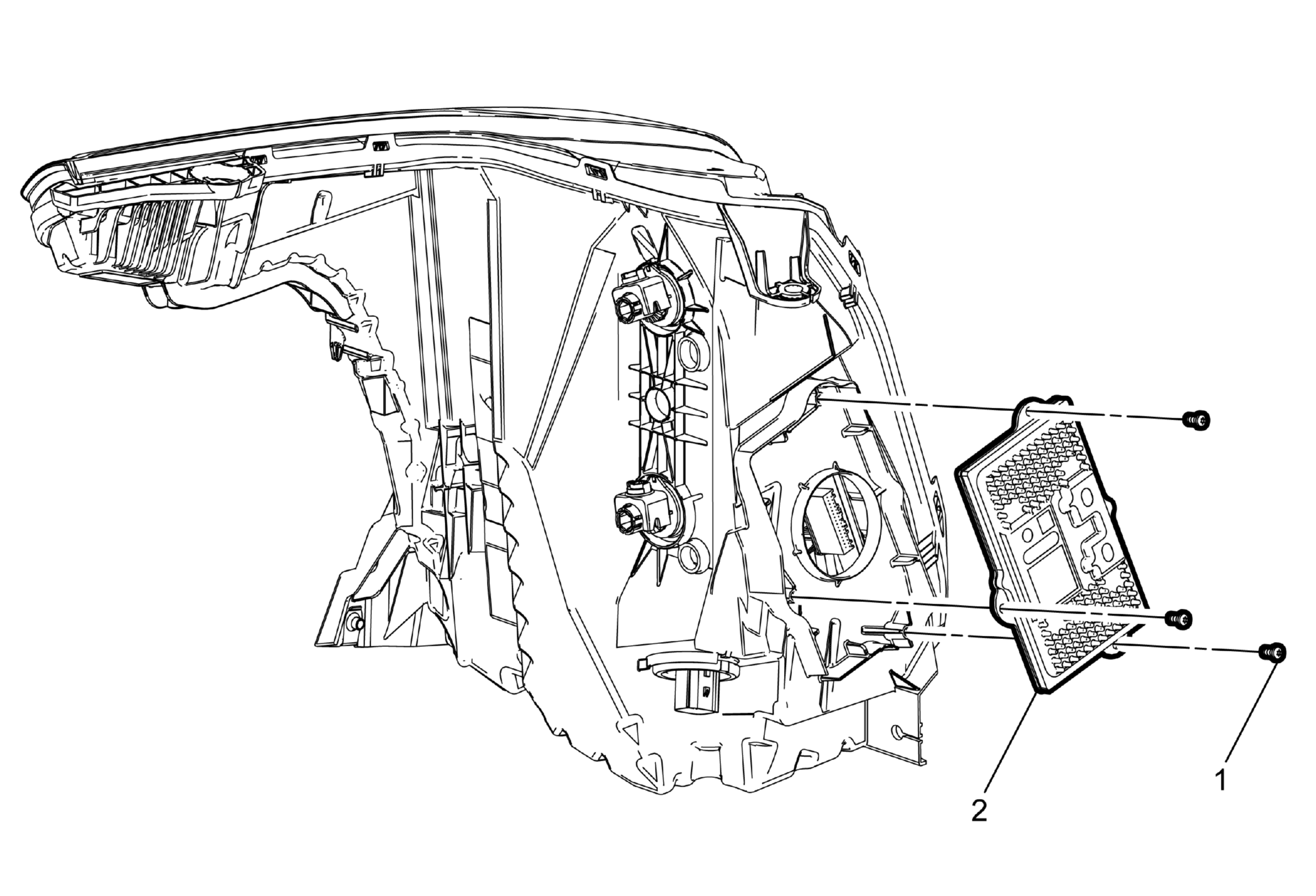

Fig 1: Headlamp Control Module (Multifunction LED)
GM3655711Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the headlamp. Refer to Headlamp Replacement (GMC) Headlamp Replacement (Chevrolet) Headlamp Replacement (Cadillac) .
1 Headlamp Control Module Bolt (Qty: 3)
CAUTION:

Refer to Fastener Caution .

2 Headlamp Control Module
Procedure
Pull the headlamp control module straight out and disconnect the electrical connector to remove.
