Human Machine Interface Control Module Bracket Replacement (Cadillac)

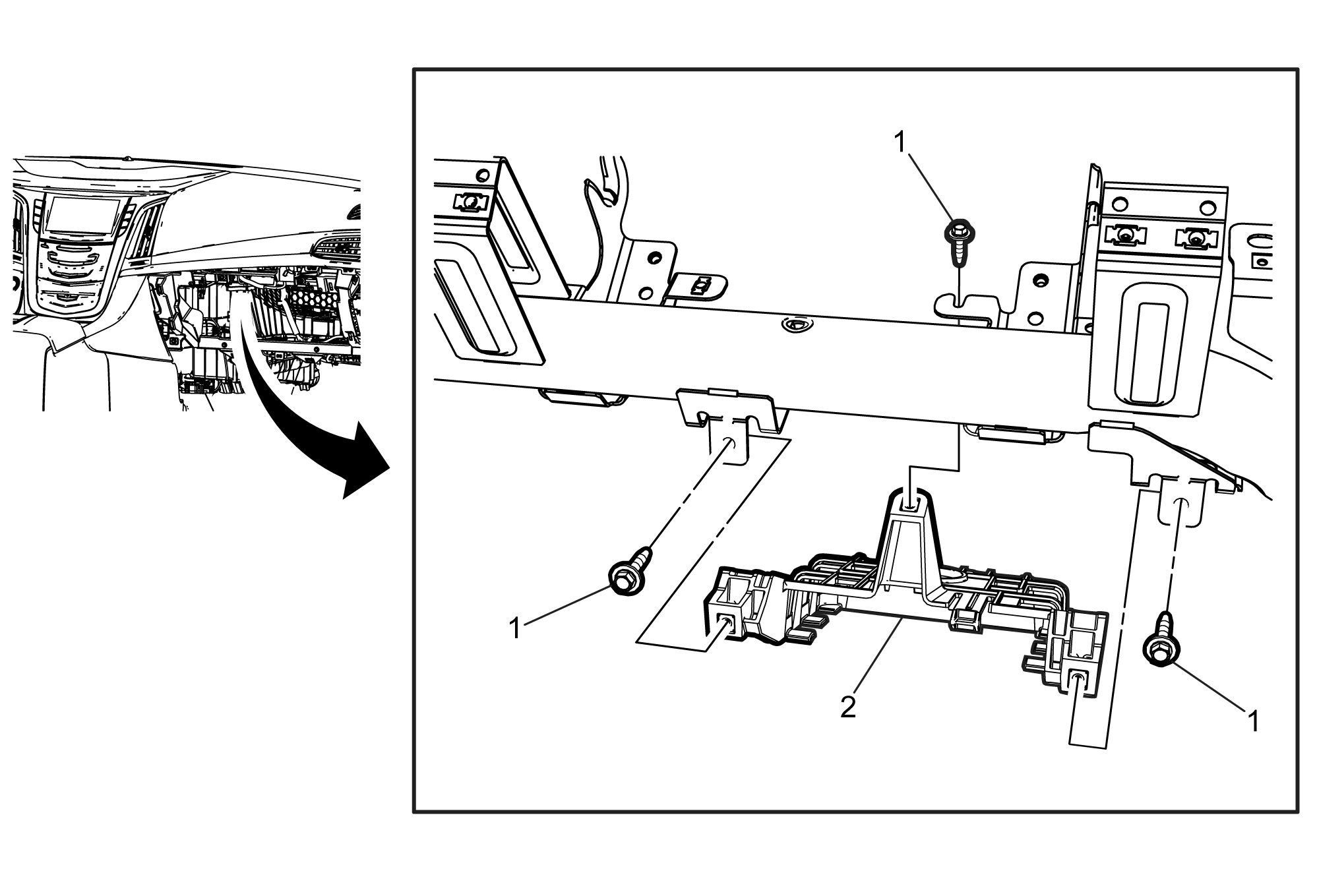

Fig 1: Human Machine Interface Control Module Bracket (Cadillac)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the communication interface module bracket. Refer to Communication Interface Module Bracket Replacement (Cadillac) . Remove the human machine interface control module. Refer to Human Machine Interface Control Module Replacement (Cadillac) .
1	Human Machine Interface Control Module Bracket Fasteners (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Human Machine Interface Control Module Bracket Procedure Transfer components, as necessary.

Callout

Component Name

Preliminary Procedure

Remove the communication interface module bracket. Refer to Communication Interface Module Bracket Replacement (Cadillac) .
Remove the human machine interface control module. Refer to Human Machine Interface Control Module Replacement (Cadillac) .

Human Machine Interface Control Module Bracket Fasteners (Qty: 3)

CAUTION:

Tighten
2.5 N.m (22 lb in)

Human Machine Interface Control Module Bracket
Procedure
Transfer components, as necessary.
